BNC Video output: BNC Coax AHD or CVBS IR 6-60mm Varifocal Lens Camera

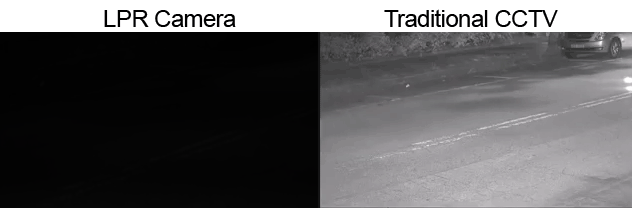

The CPV-HDIRVFLPR-1080SN is a Sony HD 1080p varifocal license plate recognition (LPR) camera with heater & blower/fan that can capture license plates up to 98 feet away moving at a speed up to 55mph. The 6mm- 60mm vari-focal lens are adjusted with the twist-rings inside the camera and that allows the owner to adjust the field of view at a much more zoomed angle. This CPV-HDIRVFLPR-1080SN has built-in infrared capability that allows it to be see in well-lit areas and down dark roads. For example, in the picture above "LPR Camera" at night time the camera monitors the enviorment of the area and turns on the LEDs as the car goes by. Thus, providing a sharper and clearer picture of the license plate than your traditional CCTV camera.
Live Video of the License Plate Recognition 6-60mm Varifocal Lens Camera
The Electronic Shutter provides a sharper picture by slowing down each frame.Thus, eliminating the motion blur as a car passes by and providing an accurate image of the license plate.
Key Features:
Model NO.
CPV-HDIRVFLPR-1080SN
Video System
PAL/NTSC
Sensor
Sony CMOS Sensor
Video Output Mode
AHD/CVBS Signal
Resolution
AHD:1080P/720P CVBS:700TVL
Adjustment Method
Mode 1-6 by local button or RS485
LED
4pcs white or IR LEDs array brightness adjustable
Option Model Function
Ground sensor input, LED off or environment monitoring function when the car passes away
Lens
6-60mm manual varifocal lens
Day/Night
B/W image and ICR auto switching for IR model
Power Supply
DC12V(±10%),1A at DC12V(Max)
Work Environment
-30℃ ~ 60℃, 20% ~ 90% RH
Temperature Control
Heater works at -5℃(optional), fan works at 45℃
Dimension
290 x 147 x 101mm
(Power supply not included see Accessories) * Regular Stocking Item Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice
