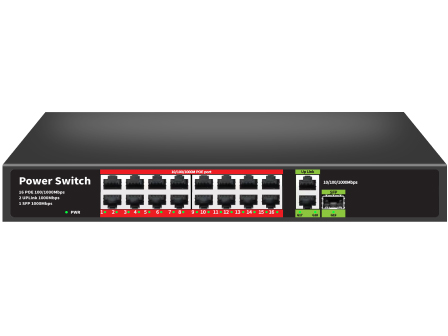

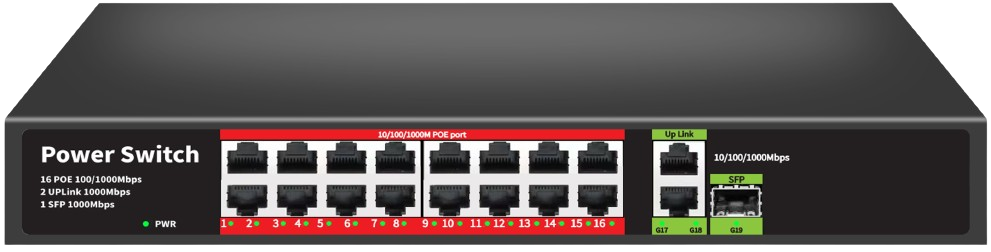

16 Port 10/100/1000 Mbps with PoE + 1 SFP Port + 2 Gigabit Uplink/DVR Port Ethernet Switch

Product ID CPV-SW16G-2
List Price: $195.00
Price: $95.00

16 Port 10/100/1000 Mbps with PoE + 1 SFP Port + 2 Gigabit Uplink/NVR Port Ethernet Switch


Built to last, without intervention

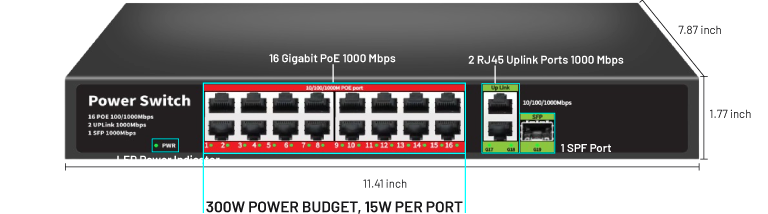

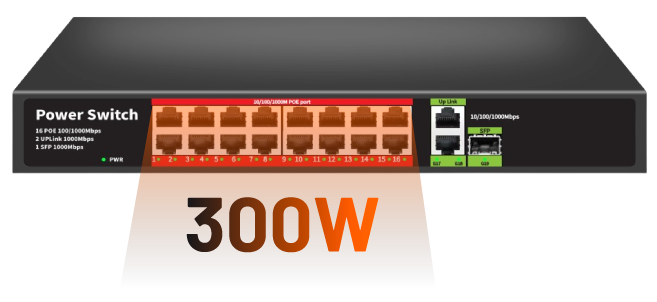

300W total power budget designed for conitinues delivery for camera and other PoE systems

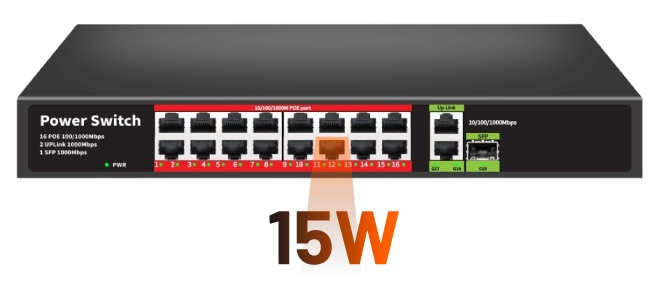

Upto 15W Power Output per Port


Unmanaged PoE Switches are Plug and Play, No configuration needed
Optimized for continues high bandwidth transmission from 4K cameras



The CPV-SW16G-2 switch tackles demanding PoE network expansion. Loaded with 16 PoE ports (IEEE 802.3af, up to 15.4 watts each), it efficiently powers devices and prioritizes power allocation. With a total PoE budget of 300 watts, intelligent power management protects non-PoE equipment. It boasts advanced technology for smooth data transmission and offers flexible connectivity with 16 PoE RJ45 ports, 2 upper RJ45 ports, and 1 SFP port. All ports support auto-negotiation for a user-friendly plug-and-play experience, making it ideal for diverse network applications.

Model

CPV-SW16G-2

PoE port

1 to 16 IEEE802.3af support

SFP port

support

PoE port output power

15W IEEE802.3 AF

PoE Wire core

1/2+,3/6-

PoE total power

≤300W

PoE Connection Standard

IEEE802.3 AF

PoE type

End Transconnection

Network standards

IEEE 802.3 IEEE 802.3 u, 802.3 x, 802.3a f

Network media

10/100 BASE-TX：5 class and above unshielded twisted pair

Network signal distance

Transmission ≤150 m

Backplane bandwidth

12 Gbps Backplane bandwidth

Forwarding mode

Storage forwarding

MAC address

2K MAC address list

Port function

Access to Power Priority Mechanism, Fast and Forwarding, MAC Automatic Learning and Aging

Working environment

-25℃-40℃

Input power

100-240VAC 2A

Power

POE Status indicator lamp power indicator

Weight

2.5kg ~6 pounds

Size

290mm*200mm*45mm(L*W*H)



Price: $95.00
