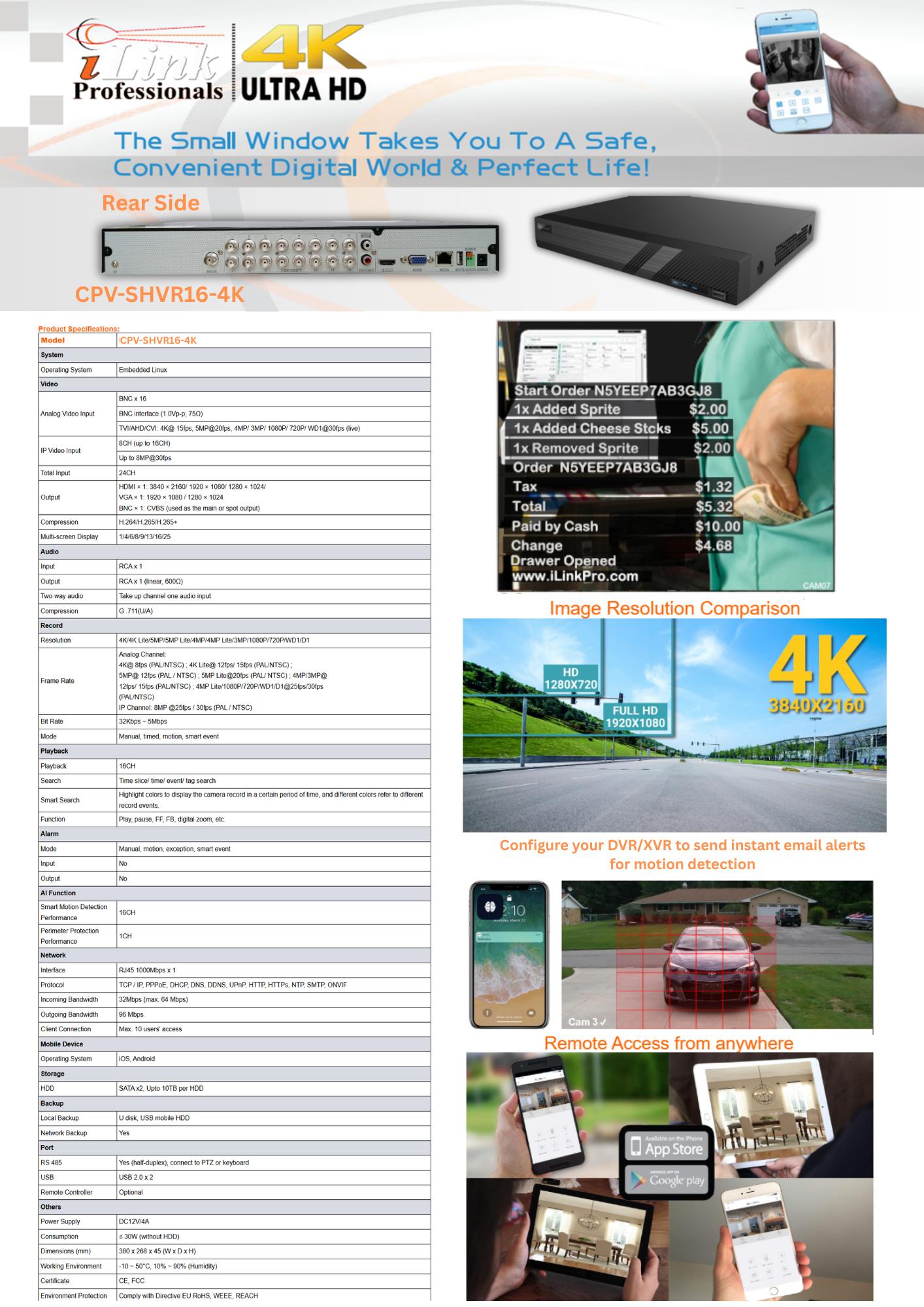

Model
|

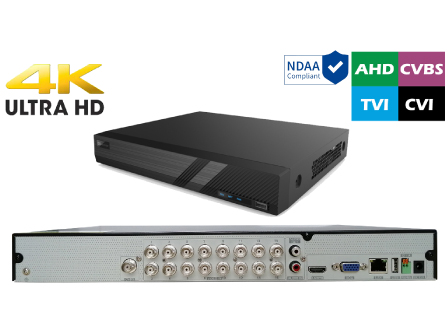

iSHVR16-4K
|
System
|
OS
|
Embedded Linux
|
Video
|
Analog Video Input
|
BNC ×16
|
BNC interface (1 .0Vp-p; 75Ω)
|
TVI/AHD/CVI: 4K@ 15fps , 5MP@20fps , 4MP/3MP/ 1080P/720P/WD1@30fps (live)
|
IP Video Input
|
8CH (up to 16CH)
|
Up to 8MP @30fps
|
Total Input
|
24CH
|
Output
|
HDMI × 1: 3840 × 2160/ 1920 × 1080/ 1280 × 1024
VGA × 1: 1920 × 1080 / 1280 × 1024
BNC × 1: CVBS (used as the main or spot output)
|
Compression
|
H .264/H .265/H .265+
|
Multi-screen Display
|
1 /4/6/ 8/9/ 13/ 16/25
|
Audio
|
Input
|
RCA ×1
|
Output
|
RCA × 1 (linear, 600Ω)
|
Two-way audio
|
Take up channel one audio input
|
Compression
|
G .711(U/A)
|
Record
|
Resolution
|
4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/ 1080P/720P/WD1/D1
|
Frame Rate
|
Analog Channel: 4K@ 8fps (PAL/NTSC) ; 4K Lite@ 12fps/ 15fps (PAL/NTSC) ; 5MP@ 12fps (PAL / NTSC) ; 5MP Lite@20fps (PAL/ NTSC) ; 4MP/3MP@ 12fps/ 15fps (PAL/NTSC) ; 4MP Lite/1080P/720P/WD1/D1@25fps/30fps (PAL/NTSC)
IP Channel: 8MP @25fps / 30fps (PAL / NTSC)
|
Bit Rate
|
32Kbps ~ 5Mbps
|
Mode
|
Manual, timed, motion, smart event
|
Playback
|
Playback
|
16CH
|
Search
|
Time slice/time/event/tag search
|
Smart Search
|
Highlight colors to display the camera record in a certain period of time, and different colors refer to different record events.
|
Function
|
Play, pause, FF, FB, digital zoom, etc.
|
Alarm
|
Mode
|
Manual, motion, exception, smart event
|
Input
|
No
|
Output
|
No
|
AI Function
|

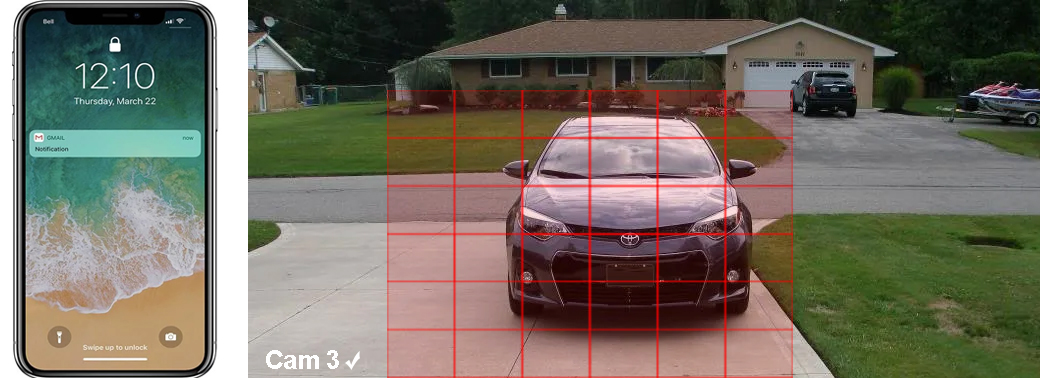

Smart Motion Detection Performance
|
16CH
|
Perimeter Protection Performance
|
1CH
|
Network
|
Interface
|
RJ 45 1000Mbps × 1
|
Protocol
|
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP, ONVIF
|
Incoming Bandwidth
|
32Mbps (max. 64 Mbps)
|
Outgoing Bandwidth
|
96Mbps
|
Client Connection
|
Max. 10 users’ access
|
Mobile Device
|
OS
|
iOS, Android
|
Storage
|
HDD
|
SATA× 2, up to 10TB per HDD
|
Backup
|
Local Backup
|
U disk, USB mobile HDD
|
Network Backup
|
Yes
|
Port
|
RS 485
|
Yes (half-duplex), connect to PTZ or keyboard
|
USB
|
USB 2 .0 × 2
|
Remote Controller
|
Optional
|
Others
|
Power Supply
|
DC12V / 4A
|
Consumption
|
≤ 30W (without HDD)
|
Dimensions(mm)
|
380 × 268 × 45 (W × D × H )
|
Working Environment
|
- 10~50°C, 10%~90% (humidity)
|
Certificate
|
CE, FCC
|
Environmental Protection
|
Comply with Directive EU RoHS, WEEE, REACH
|
