Model
|

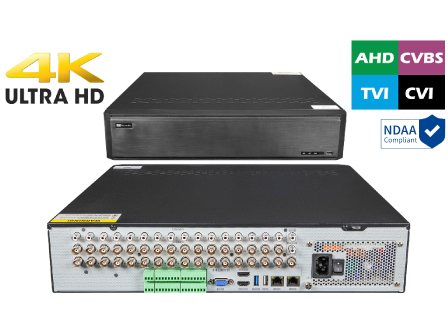

iSHVR32-4k
|
|
System
|
OS
|
Embedded Linux
|
|
Video
|
Analog Video Input
|
BNC × 32
|
|
BNC interface (1 .0Vp-p; 75Ω)
|
|
TVI/AHD/CVI:4K@15fps;5MP@20fps;4MP/3MP/1080P/720P/WD1@25fps/30fps (live)
|
|
IP Video Input
|
8CH (up to 16CH)
|
|
Up to 8MP@30fps
|
|
Total Input
|
40CH
|
|
Output
|
HDMI 1: 3840 × 2160 / 1920 × 1080/ 1280 × 1024
HDMI 2: 1920 × 1080 / 1280 × 1024 / 1024 × 768(HDMI1 and HDMI2 output different video sources) VGA × 1: 1920 × 1080 / 1280 × 1024 (VGA and HDMI1 output the same video source) BNC × 1: CVBS (used as the main or spot output)
|
|
Compression
|
H .264/H .265
|
|
Multi-screen Display
|
Main output: 1/4/6/ 8/9/ 13/ 16/25/32/36
AUX output :1/4/6/ 8/9
Total output: 36+9
|
|
Audio
|
Input
|
RCA × 16
|
|
Output
|
RCA × 1 (linear, 600Ω)
|
|
Two-way audio
|
Take up channel one audio input.
|
|
Compression
|
G .711(U/A)
|
|
Record
|
Resolution
|
4K/4K Lite / 5MP/5MP Lite/4MP/4MP Lite/3MP/ 1080P/ 1080P Lite/720P/WD1/D1
|
|
Frame Rate
|
Analog Channel: 4K@ 8fps(PAL / NTSC) ; 4K Lite@ 12/ 15fps(PAL / NTSC) ; 5MP @ 12fps (PAL / NTSC) ; 5MP Lite@20fps (PAL / NTSC) ; 4MP/3MP@ 12/ 15fps(PAL / NTSC) ; 4MP Lite/1080P /720P/WD1/D1@25fps (PAL) / 30fps (NTSC)
IP Channel: 25fps (PAL) / 30fps (NTSC)
|
|
Bit Rate
|
32Kbps ~ 5Mbps
|
|
Playback
|
Playback
|
16CH
|
|
Search
|
Time slice/time/event/tag/smart search
|
|
Smart Search
|
Highlight colors to display the camera record in a certain period of time, and different colors refer to different record events.
|
|
Function
|
Play, pause, FF, FB, digital zoom, etc.
|
|
Alarm
|
Input
|
16CH
|
|
Output
|
8CH
|
|
AI Function
|
Smart Motion Detection Performance
|
No
|
|
Perimeter Protection Performance
|
No
|
|
Network
|
Interface
|
RJ 45 1000Mbps × 2
|
|
Protocol
|
TCP / IP, HTTP, HTTPS, 802. 1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
|
|
Incoming Bandwidth
|
48Mbps (max. 96Mbps)
|
|
Outgoing Bandwidth
|
192Mbps
|
|
Client Connection
|
Max. 20 users’ access
|
|
Mobile Device
|
OS
|
iOS, Android
|
|
Storage
|
HDD
|
SATA×8, up to 10TB per HDD
|
|
RAID
|
RAID 0, 1, 5, 6, 10
|
|
Backup
|
Local Backup
|
U disk, USB mobile HDD
|
|
Network Backup
|
Yes
|
|
Port
|
RS 485
|
Yes (full-duplex), connect to PTZ or keyboard
|
|
USB
|
USB 2 .0 × 2; USB 3 .0 × 1
|
|
Remote Controller
|
Optional
|
|
Others
|
Power Supply
|
ATX-200W
|
|
Consumption
|
≤ 50W (without HDD)
|
|
Dimensions(mm)
|
445 × 436 × 90(W × D × H)
|
|
Working Environment
|
- 10~50°C, 10%~90% (humidity)
|
|
Certificate
|
CE, FCC
|
|
Environmental Protection
|
Comply with Directive EU RoHS, WEEE, REACH
|
