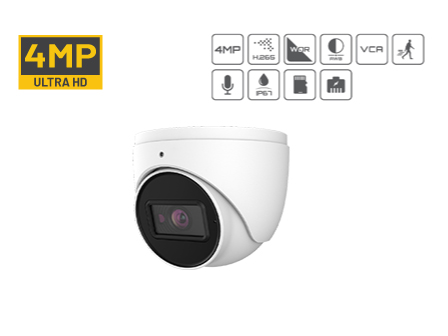

Model |
CPV-SMIRFD-4MP |
|
Camera |
|
Image Sensor |
1/3" 4MP CMOS |
|
Image Resolution |
2560 (H) x 1440 (V) |
|
Electronic Shutter |
1/2s ~ 1/100,000s |
|
Min. Illumination |
0.005 Lux @ F1.6, AGC ON; 0 Lux IR on |
|
Smart IR |
Yes |
|
IR Distance |
98 ft (30 m) |
|
Lens Type |
Fixed |
|
Iris Type |
Fixed Iris |
|
Focal Length |
2.8 mm |
|
Angle of View |
Horizontal: 94.0° |
|
Vertical 50.0° |
|
Diagonal: 115.0° |
|
Max. Aperture |
F1.6 |
|
Pan/ Tilt/ Rotation |
Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotation; 0° ~ 360° |
|
Compression Standards |
|
Video Compression |
H.265 / H264 / MJPEG |
|
Streaming Capability |
3 Streams |
|
Video Frame Rate |
Main Stream: 4MP / 3MP / 1080P / 720P @ 25 / 30 fps |
|
Sub Stream: 720P / D1 / CIF @25/30 fps |
|
Third Stream: D1 / CIF / 480x240 @ 25 / 30 fps |
|
Video Resolution |
4MP(2560 x 1440), 3MP(2304 x 720), 1080P |
|
(1920 x 1080), 720P(1280 x 720), D1, 480P |
|
240, CIF |
|
Video Bitrate |
64 Kbps ~ 8 Mbps |
|
Video Bitrate Type |
VBR / CBR |
|
Image and Feature Support |
|
Wide Dynamic Range |
120 dB true WDR |
|
Day / Night |
ICR |
|
BLC Mode |
Yes |
|
HLC Mode |
Yes |
|
Digital Noise Reduction |
3D DNR |
|
Motion Detection |
Yes |
|
Electronic Image Stabilization |
N/A |
|
Defog |
N/A |
|
Digital Zoom |
N/A |
|
Flip |
Yes |
|
Mirror |
Yes |
|
Privacy Masking |
N/A |
|
Image Rotation |
N/A |
|
ROI |
Each ROI to be configured separately |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. Adjustable through client software or web browser. |
|
IPC Alarm |
N/A |
|
Alarm Input |
N/A |
|
Alarm Output |
N/A |
|
Audio Compression |
N/A |
|
Network & Interface |
|
Ethernet |
RJ45 |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTp, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
|
Network Interoperability |
ONVIF |
|
Streaming Method |
N/A |
|
Network Max. Users |
3 |
|
Storage |
Built-in Micro SD Card (Support max. 256GB) |
|
Video Output |
N/A |
|
General Function |
Watermark, IP address filtering, video mask, heartbeat, illegat login lock, corridor, pattern |
|
Audio |
1/1 |
|
Built-in Mic |
Yes |
|
RS485 |
N/A |
|
Reset Button |
Yes |
|
General |
|
Power Supply |
12V DC / PoE |
|
Power Consumption |
< 5W |
|
Operating Temperature |
-30 ~ 60°C (-22 ~ 140°F) / Lenn than 95% RH |
|
Storage Temperature |
-30 ~ 65°C (-22 ~ 149°F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Casing |
- |
|
Dimensions |
82.8mm x ø 94.6mm (3.26" x ø 3.72") |
|
Net Weight |
Approx. 460g (1.06lb) |
|
Installation |
Ceiling mounting, Wall mounting |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, WEEE (2012/19/EU), Directive 94/62/EC and REACH (EC1907/2006) |
