Completely Plug-and-play with Hikvision, Uniview, TVT, LTS, Viewtron, GW Security, ENS Titanium, ENS Emerald, ENS-H, and many more.
Key Features:
• 1/3" GC465 CMOS sensor.
• 6MP HD resolution output.
• Ultra low illumination 0.01Lux.
• Day/Night (ICR), AWR, 2D/3D-DNR, IR-CUT.
• D-WDR, Motion Detection, Human and Vehicle Detection, Privacy Mask, Flip.
• RTSP and Onvif 17.06 comptible.
• H.265/ H.264 dual-stream media server.
• Easy-to-use P2P Cloud Service.
• Multi web browser, PC Client, mobile APP remote access.
• RJ45 100mbps network port, IEEE802.3af PoE.
• Lightning protection 4000V.
• Strong water-proof housing, IP65.
• 12 pcs SMD IR Led, IR distance 10-15 meters.
• HD 3.7,, lens.
• Built-in Mic.
ADVANCED MOTION DETECTION & HUMAN, VEHICLE DETECTION
REMOTE ACCESS FROM MOBILE AND DESKTOP

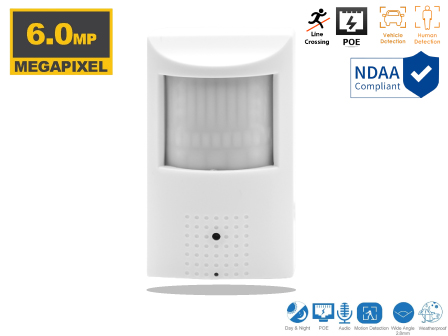

Product Specifications:
|
Model |
CPV-SMIRFPIR-6MPAI |
|
Camera |
|
Image Sensor |
1/3" GC4653 CMOS |
|
Effective Pixels |
3072(H) x 2048(V) |
|
Electronic Shutter |
AUTO, 1/25S ~ 1/100000S |
|
Min. Illumination |
AUTO/Manual 1/10s ~ 1/100000s, shutter threshold |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto / Manual |
|
BLC/ HLC |
Support |
|
DNR |
2D/3D DNR |
|
Lisense Plate Mode |
Yes |
|
Other |
Multi-lines, OSD, Privacy Mask, Flip |
|
Encode |
|
Video Standard |
H.264/ H265/ H.265+ |
|
Video Resolution |
Main Stream: 25fps@6MP(3072x2048) / 5MP(2592x1244), 30fps@4MP / 3MP / 1080P / 720P
Sub Stream: 30fps@D1 / VGA / 360P / CIF, etc. |
|
Video Bitrates |
64Kbps - 8Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Built-in Mic |
Yes |
|
Smart Detection |
|
Motion Detection |
Support |
|
Target Detection |
Human and Vehicle Detection |
|
LED |
|
LED |
12 pcs SMD IR LEDs |
|
Distance |
10 - 15 M |
|
Lens |
|
Focal Length |
3.7MM Lens |
|
Language |
|
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian. |
|
Network Services |
|
Protocol |
HTTP / RTSP / FTP / NFSv3 / SMTP / DHCP / NTP / RTMP, etc. |
|
P2P |
Yes |
|
Web |
IE, Firefox, Chrome, Edge, Safari, etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
Network Port |
1-RJ45, 100Mbps |
|
Power Supply |
12 VDC ± 10% |
|
PoE |
802.3af / at 48V |
|
Powr Consumption |
< 8W |
|
Operating Temp. |
-20°C (+60)°C, 10% - 90% RH |
