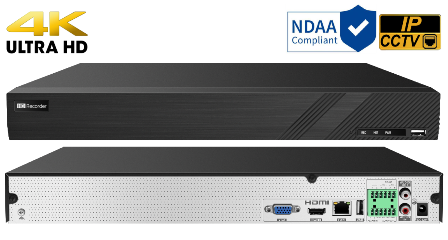

8ch AI + Cloud Video Storage + POS + Video Monitoring Gateway

Product ID CPV-SGW8-4K
List Price: $275.00
Price: $199.00
POS/Cash Register this device will connect to
POS/Cash Register this device will connect to
POS/Cash Register this device will connect to
Please select if you want this NVR or DVR/HVR with Point-of-Sales Integration, configuration, and support. Please note that any configuration changes on POS may have to be done by the POS vendor and are not included in this support.



Artificial Intelligence (AI), Point-Of-Sale Cash Register (POS), Cloud Video Storage, and Video Monitoring Gateway with support for 8 IP CCTV Cameras direct or via NVR/DVR. Compatible with Hikvision, Dahua, Lorex, Axis, Hanwha Techwin, Honeywell, Exacq, OnVIF, RTSP, and many more cameras & Network Video Recorders (NVR). This gateway device is used for clients who do not have iLink Professionals’ iS Series NVR or DVR and are looking to get our Live AI with Agent Video Monitoring Services. – VideoMonitoring247.com by iLink Professionals. No static IP is required, and it works with Talkdown horn IP or RCA speakers.

You DO NOT require this product for our monitoring service if you already have a DVR or NVR that uses any of these Mobile Apps: SuperLive Plus, SuperLive Max, SuperCam Plus, InVid Paramount, or AVY Mobil, as our Agent & AI Central Monitoring platform has direct support for it.

For Live Ai with Human Agent Verified Video Monitoring for open during business hours and closed after business hours call: 1-404-939-1999 or visit https://VideoMonitoring247.com


Key Features:



  • Support 8CH  8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/ 960H/DI/CIF IP video input
  • H.265S / H.265+ /H.265 /H.264 coding
  • Intuitive and user-friendly Graphic User Interface (GUI), Windows-style operation by mouse
  • Search: time slice, time, event, tag, and smart search
  • Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
  • Support POS information overlay on live view and playback
  • Playback: 8CH simultaneous playback
  • Express and flexible backup via USB, network, and so on
  • Pentaplex: preview, record, playback, backup, and remote access DHCP, DDNS, PPPoE network protocol
  • Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
  • Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with a mobile device
  • Multi-user online simultaneously
  • Authorization management, log view, and device status view
  • 4K ultra-high-resolution output, true high-resolution display
  • Support NAT function and QR Code scanning by mobile phones
  • Powerful mobile surveillance by smartphones with iOS and Android OS

Image Resolution Comparison





Configure your Gateway to send immediate email notifications upon detecting motion





Access your system remotely from anywhere



HERE

Product Specifications:



Model CPV-SGW8-4K
System
Operating system Embedded Linux
Video
Network Input 8 CH IPC audio input
Network Input Resolution 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
Output HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
Compression H.265S / H.265+ / H.265 / H.264
Screen Display Mode 1/4 /6/8/9
Audio
Network Input 8 CH IPC audio input
Local Input RCA × 1 (for two-way audio)
Local Output RCA x 1
Compression G.711 (U/A)
Record
Record stream Dual stream recording
Resolution 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
Frame Rate NTSC:30fps; PAL:25fps
Playback
Simultaneous Playback Max.8 CH
Search Time slice / time / event / tag search
Smart Search Highlighted color to display the camera record in a certain period of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Decoding Capability
Live View/ Playback 1×8MP@30fps; 6×1080P@30fps
Alarm
Mode Manual, sensor, motion, exception, smart events
Input IPC alarm input supported
Output IPC alarm output supported
Triggering Record, Snap, Preset, e-mail, etc.
Network
Interface RJ45 1000Mbps × 1
Protocol TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF
Incoming/Ougoing Bandwidth 120/120 (Mbps) *When the AI function of the IPC is enabled, the actual incoming bandwidth (max. bitrate) is more than the set value in the NVR.
Client Connection Max. 64 users access
Face
Face Detection Performance (AI by IPC) 8 CH
Face Detection Performance (AI by Device) 2 CH
Face Match Performance No
Statistical Graph of Information Bar graph
Statistical Mode of Information Statistics by day, week, month, quarter as well as customized time period
Video Structure Analysis
Human/Vehicle Classification(AI by IPC) 8 CH
Human/Vehicle Classification(AI by Device) 2 CH
Human/Vehicle Attribute Analysis Yes (AI by IPC)
LPR
Plate Recognition(AI by IPC) Yes
Fisheye Supports fisheye dewarping via Web Client and mobile APP
Mobile Device
Operating System iOS, Android
Storage
HDD Interface SATA 3.0 x 2, max. 10T per HDD
Backup
Local Backup U disk, USB mobile HDD
Network Backup Yes
Port
USB USB 2.0 x 2
Remote Controller Yes
Others
Power Supply DC 12V/2A
Consumption ≤ 10W (without HDD)
Dimensions (mm) 380 x 268 x 45 (WxDxH)
Working Environment -10 ~ 50 °C, 10% ~ 90% humidity
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, REACH and WEEE
