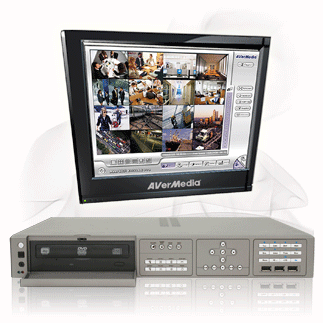

AVerMedia Hybrid 8 Port Embedded Linux Supports Analog & IP Cameras

***EOL 1 month warranty 5 days refund

Key Features :

• Embedded Linux
• Each individual channel can support a maximum of 2.3 Megapixels  (1920x1200) while the last channel is capable of supporting 5 Megapixels
• Supports major brands of IP cameras within the industry
• Supports up to 240 fps(IP & Analog) recording at D1 resolution
• Individually adjust channel frame rate
• Intelligent GUI design
• Local site preview and playback from hybrid DVR directly
• Supports numerous users with different authority for operate, control, and remote access
• E-map shows the positions of cameras, sensors, and relays
• Supports 4 SATA HDD and 1 eSATA simultaneously
• Supports Gigabit LAN for speed network connection
• Remote Software Integration: CM3000/CM3000 Gold, Remote Console, WebViewer, PDAViewer, JavaViewer, and iPhoneViewer
• Supports 8 audio inputs/ 1 audio output / 1 microphone input
• Supports 2 spot-monitor outputs and 8 channels loop through (analog only)
• Supports 16 sensors in / 4 relays out
• On-line live update for system and IP camera support upgrade

Video Feature

• 8 composite video inputs (BNC Connectors) and/or 8 IP cameras (selected IP cameras). Max. of 8 video feed per system
• IP video streaming format: MJPEG/ MPEG4/ H.264
• Analog video compression modes: MPEG4
• Supports 1CH VGA output
• 8 channel loop through outputs (analog only)
• Support static as well as dynamic de-interlacing for smoother graphics

Display

• Auto scan with full screen display under 1, 4, 8, 9, 13, 16-camera display modes
• Digital zoom in for specific area
• PTZ control: Zoom-in/Zoom-out, Focus-in/Focus-out, Direction, Speed, Preset point, Auto-pan

Recording

• Recording resolution(analog):
  • PAL: 352 x 288 (CIF), 720 x 288 (Half D1), 720 x 576 (D1)
  • NTSC: 352 x 240 (CIF), 720 x 240 (Half D1), 720 x 480 (D1)
• Recording resolution(IP): Each individual channel can support a maximum of 2.3 Megapixels  (1920x1200) while the last channel is capable of supporting 5 Megapixels
• Recording rates (analog):
  • CIF: 240/200 fps; Half D1: 240/200 fps; D1: 120/100 fps (NTSC/PAL)
• Recording rates per channel: 0~30/0~25 fps (NTSC/PAL)
• Recording modes: Continuous Recording / Smart Recording / Motion Recording / Alarm Recording / Manual Recording. (All modes can be triggered by schedule)

Search & Playback & Backup

• Local playback by channels/ date/ time
• Powerful search: by date/ time/ camera/ event/ log file
• Time search by the scrolling bar to search according to specific data and efficiently find what you want
• Bookmark: easily save links to particular locations of recorded data and play them directly from the saved links
• Advanced Event Log Viewer according to your selection on event, operation, system and network events
• Direct backup to DVR RW*, USB devise, and external HDD
  * Please refer to optional accessory, AVerDiGi RW2001 (external USB DVD RW)

Video Enhancement

• iEnhance is the exclusive video enhancement software can adjust recorded data to the highest quality image
• iStable is the video stabilizer software which can fix shaking and jolts impact on video with just one click

Remote Monitoring

• Central Management System (CM3000/CM3000 Gold)
• Remote Console
• WebViewer/ JavaViewer/ PDAViewer/ iPhoneViewer
• Dispatch Server can share transmission loading to allow more clients at remote access and keep high-speed data transmission.

E-map

• Shows the positions of cameras, sensors, and relays
• Store up to 8 different maps

Alarm Notifications

• Launch E-map
• Spot-monitor out
• Enlarge camera view
• Relay Output
• IP camera Relay Output
• Warning sound
• E-mail
• PTZ preset point tracking
• Start recording
• Send video to CMS

Optional Accessories

• Remote control
• RACK ears
• Loop through cable
• Audio input / output cable
• IR extension cable
• External USB DVD RW
• Internal HDD rack for 4th HDD installation

Connectors

• RJ-45 ( 10/100/1000 Mbps ) x 1
• USB2.0 x 3
• RS232 x 1
• RS485 x 1
• Sensors x 16
• Relays x 4



  Operating system	Embedded Linux
  Compression mode (Analog)	H/W H.264
  Video Streaming Format (IP)	H.264/MPEG4/ MJPEG
  Video input	8CH IP or analog inputs (BNC connector)
  Loop through (analog)	8CH (BNC connector)
  Recording resolution (analog inputs)	CIF: 352x288 / Half D1: 720x288/ D1: 720x576 (PAL) CIF: 352x240 / Half D1: 720x240/ D1: 720x480 (NTSC)
  Recording resolution (IP inputs)	Each channel can support 2.3M(1920x1200) IP cam and the 8th channel can support up to 5M(2592x1944) IP cam
  Recording rates (analog)	CIF: 240/ 200 fps (NTSC/PAL) Half D1: 240/ 200 fps (NTSC/PAL) D1: 120/ 100 fps (NTSC/PAL)
  Audio in (Analog only)	8 (Please refer to optional audio cable)
  Audio out	1
  Microphone in	1
  Sensor in/ Relay out	16/4
  Number of HDD supported	Support 4 SATA HDD (Please refer to optional internal HDD rack)
  eSATA port	1
  VGA out	1
  Spot-monitor output	2 (Analog only)
  Ethernet	10/100/1000Mbps
  RS485/RS232 port	1/1
  USB 2.0	Front 3 ports
  DVD RW	DVD±R, DVD±RW
  Front panel key	Yes
  Operator interface	USB Mouse, Keyboard, Remote Control
  Recording modes	Continuous Recording / Smart Recording / Motion Recording / Alarm Recording / Manual Recording.(All modes can be triggered by schedule)
  Motion detection	Yes
  E-map function	Yes
  Video search	Date/ Time/ Event/ Camera
  Visual search	Yes
  POS integration	Yes (AVerDiGi Data Box)
  PTZ control	Yes
  Advanced event log Viewer	Details complete event logs according to your selection on event, operation, system and network events
  Smart alert functions	Launch E-map / Enlarge camera view / Relay Output / IP Camera Relay Output / Warning sound / Email / PTZ preset point tracking / Start recording / Send video to CMS
  Integrate with CMS	Yes (AVerDiGi CM3000 Gold supports up to 1000 DVRs)
  Remote software	WebViewer/ Remote Console/ JavaViewer/ PDAViewer/ iPhoneViewer
  Dispatch server	Yes
  iEnhance	Yes
  iStable	Yes
  Optional accessories	Remote control, RACK ears, Audio cable, IR extension cable, External USB DVD RW (AVerDiGi RW2001), USB2RS232 converter, Internal HDD rack for 4th HDD installation
  Power Input	Power adaptor/ 19V DC
  Dimensions(H x W x D)	65 x 430 x 370 mm
  Weight	4.6 KG (HDD is not included)
  Support major brands of IP cameras	ACTi, AirLink, ALPHA, AMTK, APPRO, Approtech, Arecont, Asoni, AVerDiGi, AVICO, AXIS, BOSCH, CANON, Dentec, D-Link, Dynacolor, EtroVisioin, Eyeview, Hunt, iLink, iCanTek, IPD, IQinvision, IQeye, JVC, Level-one, Lilin, Linksys, Lumenera, Messoa, Mobotix, NipponSeki, Pixord, Panasonic, Pelco, Samsung, Sanyo, Sony, TOSHIBA, Truen, Veo, Vivotek, YOKO, ZAVIO, etc and we are able to integrate new IP camera based on customers’ requests



  Specifications are subject to change without prior notice
