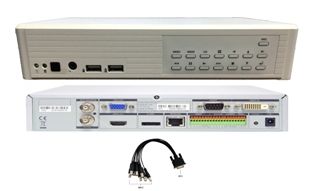

AVerMedia Hybrid 8 Port Embedded Linux Supports Analog & IP Cameras H.264

Product ID NEH1008H-OEM
List Price: $995.00
Price: $377.00

Items will ship same or next business day. Items shipped from Atlanta, GA USA

We had made some of these for one of our customers who wanted OEM (to sell as their company brand) and we have some left from that order. They don't have the AVer logo on the DVR but all is firmware and the GUI has the AVer logo on it. These will also work with CMS3000, same remote client, and same PDA software for Android/iPhone. This is an authentic AVer product, with full warranty.

Part of our popular EH series, the new budget-friendly EH1008H DVR not only delivers a great price, but comes with better-than-standard features including full hybrid functionality, a robust Graphic User Interface and expanded remote management capabilities. User-friendly operation, low maintenance, essential surveillance functions and great value makes the EH1008H perfect for deployments in smaller facilities.

Model

EH1008H

system

operating system

embedded Linux

total channel number

8 channels

max. IP camera input

4

max. analog camera input

8

performance

display (analog)

240 / 200fps (NTSC/PAL)

display (IP)

2M @ 6fps

recording (analog)

compression

H.264

resolution

NTSC: 352 x 240 (CIF), 720 x 240 (Half-D1), 720 x 480 (D1)

PAL: 352 x 288 (CIF), 720 x 288 (Half-D1), 720 x 576 (D1)

frame rate (NTSC/PAL)

CIF: 240/200fps

Half-D1: 120/100fps

D1: 60/50fps

recording (IP)

resolution

up to 5 megapixels for one channel, and a total of 8 megapixels for all 4 IP camera channels in H.264/MPEG-4/MJPEG format

throughput

17.5 Mbps

storage

internal HDD capacity

1 SATA HDD

internal RAID support

-

external HDD capacity

e-SATA HDD or RAID x 1

iSCSI support

-

backup

internal DVD-RW

-

interface

monitor

VGA output

1 (1024 x 768)

HDMI output

1 (1024 x 768)

TV output

1 (supports hybrid multi-quad output)

spot output

1 (supports full screen output from analog camera channels with triggered alarms)

audio

input

4 line-in, 8 KHz sampling rate

ouput

1 line-out

MIC

input

no

alarm

sensor (alarm) input

4

input voltage: max. DC 6V

relay output

1 (NO/NC)

voltage range: AC 125V / DC 30V

switching current: max. 1A

network

Ethernet (RJ45)

1 (10/100Base-T)

backup

internal DVD-RW

no

connection

e-SATA

1 port

RS-232

1 (D-sub 9 pins, male)

RS-485

1 set (Tx+, Tx-, Rx+, Rx-)

USB 2.0

2 (on front panel)

control

front key pad

no

LCD display

no

general

electrical

power input

24W power adapter, DC 12V

environmental

operating temperature

0°C to 40°C (32°F to 104°F)

operating humidity

90% RH

mechanical

dimensions (W x H x D)

245 x 50 x 160 mm

weight (net)

0.8kg

Download Full Resolution PDF
*Specification & Illustrations are subject to change without prior notice
