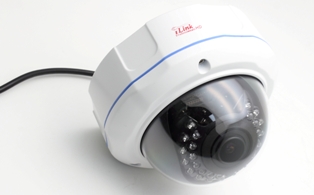

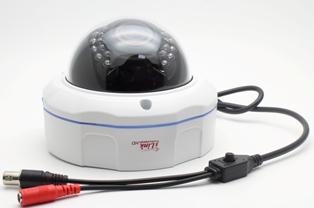

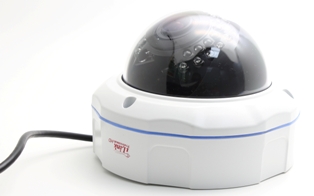

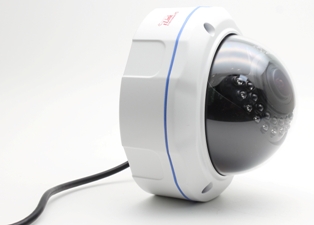

HD 5MP Sony Starvis Dome CCTV Security Varifocal Coax Camera Dual Voltage AHD+TVI+CVI+CVBS / 2000 TVL Analog Infrared Indoor Outdoor Color Day Night

Product ID CPV-HDIRVFDFIO-5SNV
List Price: $215.00
Price: $109.00

4 in 1 Mode via OSD  - BNC Video output:
BNC Coax AHD/TVI/CVI 5MP or Standard Analog 960H Dome IR  2.8-12mm Lens Camera

The CPV-HDIRVFDFIO-5SNV is a 4-in-1 dual voltage Sony Starvis varifocal dome HD 5 Megapixel infrared surveillance camera with a 90 degree viewing angle that supports the following video formats: AHD, TVI, CVI, and standard analog (CVBS). The CPV-HDIRBFIO-5SN provides the viewer with an image that is 2.4 times clearer than 1080p resolution. The AHD, TVI, and CVI video modes support 5 megapixels (2592x1944) and the standard analog mode (CVBS) supports 960H resolution (960 x 480). The appropriate video mode can easily be selected by using the small joystick  that is attached to the camera's OSD video cable. The 2.8 to 12mm Varifocal Lens are adjusted with the twist-rings on the camera and that allows the viewer to adjust the field of view at a much more zoomed angle. This camera also comes with 25 built IR LED's that enables the camera to see in complete darkness up to 80 feet. 5MP is one of the highest resolutions in our analog range and it provides the viewer with an image that has 2.4 times as many pixels as 1080p resolution.



2.8-12MM VAriFOCAL LENS

IMAGE RESOLUTION COMPARISON

Model NO.

CPV-HDIRVFDFIO-5SNV

Video Output Mode

AHD/CVI/TVI/CVBS

Camera



Image Sensor

Sony Starvis IMX335

Image Resolution

5.0 MP

Effective Pixels

5M: 2592*1944

TV System

PAL/NTSC

Video Output Mode

AHD/CVI/TVI: 5.0 MP

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Lens



Focus Length

2.8-12mm

Focus Control

Manual

Lens Type

Manual

Pixels

5M Pixels

Auto Iris Support

N/A

Night Vision



Infrared LED

¢5X25PCS

Infrared Distance

25M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features



Starlight

YES

Day/Night

YES

OSD Menu Language

YES

White Balance

AUTO / MANUAL

Gain Control

AUTO

Noise Reduction

DNR

Picture TVjustment

YES

WDR

DWDR

OSD Support

YES

Dip Switch

N/A

General



Waterproof

N/A

Dual Voltage

Dual-voltage 12V DC & 24V AC

IR Cut Filter

YES

Heater

N/A

Audio

N/A

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Power Source

DC12V±10%,550mA

Dimension

Ȼ140mmx144(H)mm

Weight

1400g

MECHANICAL

Color

White

Dimensions

Φ139*128mm

Download Full Resolution PDF
(
Power supply not included see Accessories)
 *  Regular Stocking Item

*Specification & Illustrations are subject to change without prior notice
