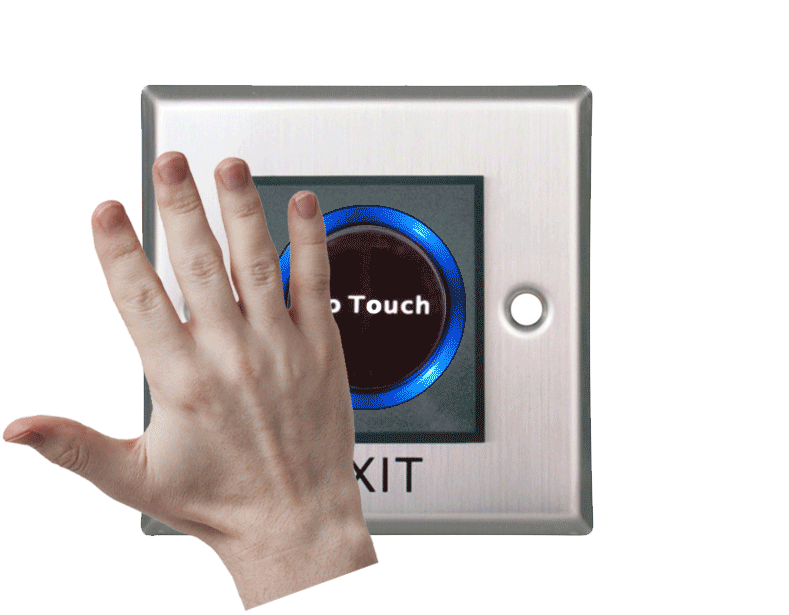

The CPV-ACCEBNT-1 is an exit button with an infrared sensor which allows the user to unlock the door without touching the exit button. This product is perfect for hospitals, restaurants, commercial buildings, and many more. When the button is activated, the door unlocks the maglock/strike and the LED ring around the button changes from blue to red or from red to blue.
Specification
Product Parameter
Parameter Description
Dimensions
86Lx86Wx29(mm)
Input
DC12V
Contact Rating
12-28V,3A
Output Contact
NO/NC/COM
Mechanical Life
500000 tested
Suitable for Door
Operating Temp.
-20℃～+55℃(14-131F)
Suitable Humidity
0-95% (relative humidity)
Detection Range
0.1-10cm
LED Indicator
Red LED indicator: Power ON (Standby)
Green LED indicator: Power ON (Sensation)
Weight
0.148g
