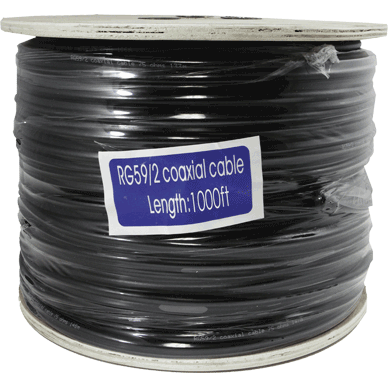

1000ft RG59 Coaxial Cable with Two 18g Power Wires
Product ID CPV-C1000SC
1000ft RG59 Coaxial Cable with Two 18g Power Wires

List Price: $325.00
Price: $149.00

Quantity:

Add to cart

« Previous | Next »


RG59 Siamese cable is a heavily shielded cable which contains an RG59 COAX video and pair of 18g power wires. The iLink RG59 cable has a solid copper core along with 95% copper braided shielding. The RG59 Siamese cable is durable and can be cut to meet the customer’s exact need regarding length. The RG59 Siamese cable requires BNC connectors at the end of each RG59 coax part of the cable for the CCTV video transmission.

  • Siamese type configuration with separation web
  • RG-59/U Type coax plus one pair 18 AWG stranded
  • (Coax) solid bare copper conductor 20 AWG
  • Gas injected polyethylene coaxial core Nom. OD .142 inch (3.61 mm) with an aluminum polyester tape barrier
  • Bare copper braid shield 95% coverage
  • Unshielded 18 AWG twisted pair employing PVC insulation and PVC fillers
  • Overall PVC jacket Nom. OD .232 x .460" (5.89 x 11.68 mm)

Applications:

    Indoor cable (non-conduit per NEC) for:

  • CCTV

Rating as per NEC:

  • UL listed NEC type CM as defined in Article 800
  • C(UL)+ listed CMH
  • Constructed in accordance with UL Standard 444
  • Listed as being resistant to the spread of fire as defined in Section 800 of the National Electric Code.

Installation Characteristics:

  • Minimum Bend Radius: 2.5"
  • Maximum Pulling Tension: 45 lbs.

Color Code:

  • Conductors: 1. Black, 2. Red
  • Jacket Color: Black

Special Notes:

    +C(UL) CMH Canadian UL accepted mark replaces PCC-FT1 Rev. 1. 1/2000

Electrical Characteristics:

  • Nominal capacitance: 16.2 pf/ft 53.1 pf/m*
  • Vel. of Prop.: 82%
  • Nominal Impedance: 75Ω
  • 20 AWG Nom. D.C.R. @ 20°C: 10.1Ω/1000 ft.
