Video Features
|
16 composite video inputs (BNC Connectors) and/or 16 IP camera ,
16 audio input channels on analog and/or 16 audio via IP Camera
|
|
|
|
|
|
RCA composite video out to a regular terminal or TV monitor DVR model only
|
|
Support static as well as dynamic de-interlacing for smoother graphics
|
|
Built in noise reduction algorithm
|
|
Display
|
Adjustable frame rate and resolution on each camera
|
|
Auto Scan with full screen display under 1, 4, 8, 9, 13, 16-camera display modes
|
|
Digital zoom into specific area
|
|
Pan/Tilt/Zoom (PTZ) cameras: PTZ script is available for adding new protocols
|
|
Auto Gain Control (AGC) balance image quality
|
|
Software based night view function enhances low light condition
|
|
Recording
|
Video compression: Advanced MPEG4 / H.264
|
|
Video encryption supported
|
|
|
|
Recording modes: Alarm triggered/ sensor triggered/ motion detection/ continuous/ smart/ scheduled/ voice detection
|
|
Programmable multiple masking zones
|
|
Intelligent shield protects privacy
|
|
Capable of recording audio channel(s) with full synchronization
|
|
Max 16 audio channels recording
|
|
Auto recycling when storage nearing full
|
|
Intelligent pre-motion and post motion recording
|
|
Supports video encryption in Advanced MPEG4
|
|
Search & Playback & Backup
|
Real time playback without having to disable recording/ network functions
|
|

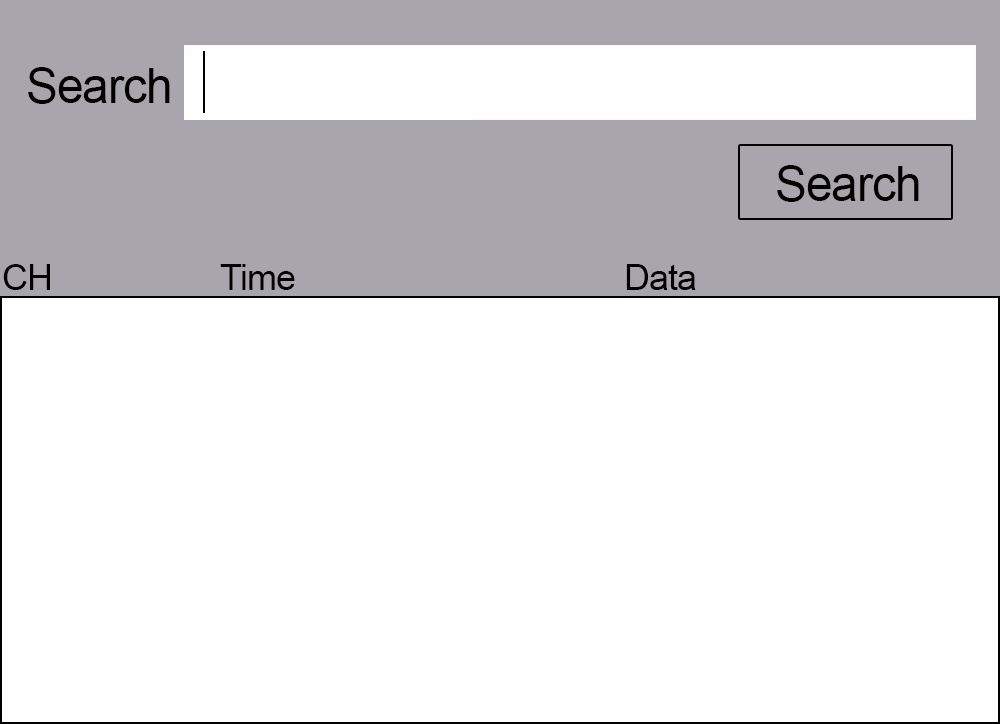

Powerful search: by date, time, camera, area, event, vision, POS text or log file
|
|
Full screen playback
|
|
Complete playback control: forward, backward, speed up, slow down
|
|
Digital zoom into any designated area
|
|
Export a single frame into a file or print out
|
|
Set a segment and have it output as avi video clip
|
|
Visual search by day, hour, minute, second
|
|
Bookmark search: by time, description, protect recorded file from being recycled and show file status
|
|
Direct backup to DVD-RW/CD-RW (requires Nero Ultra 6.0+)
|
|
Remote Access
|
Simultaneous multiple remote live/ recorded surveillance via Internet Explorer 6
|
|
Backup remotely
|
|
Central Management server controls multiple DVRs
|
|
Remote monitoring / remote recording / playback remote recording/ playback server recording
|
|
Full control of PTZ cameras remotely
|
|
PDA handy view (Windows CE / Pocket PC 2002 or above)
|
|
Two-way audio communication
|
|
1, 4, 9 and 16 screen divisions
|
|
Remote E-map
|
|
Choose from dial-up, Internet or LAN speed
|
|
Dispatch server allows you to broadcast video stream to the public
|
|
SDK support
|
|
Schedule
|
Record, enable network, backup, reboot and disabling alarms
|
|
One time or weekly schedule
|
|
Scheduling can be done down to every quarter of an hour
|
|
E-map
|
Shows the positions of cameras, sensors, and relays
|
|
Store up to 8 different maps
|
|
Alarm Notifications ( on motion detected, video loss and/or sensor triggered)
|
E-mail notifications
|
|
FTP notifications
|
|
Voice modem call out notification
|
|
Turn relay on (light switch, alarm, etc)
|
|
Plays warning sound (can be re-recorded)
|
|
Start recording on multiple cameras (capture video from different angle)
|
|
Send TV-out signals
|
|
Launch E-maps
|
|
Enlarge camera view
|
|
Send SMS/MMS (Requires SMS Modem)
|
|
Alert messages helps security follow proper standard operational procedures
|
|
User Access
|
Setup users with theri own individual passwords for remote access
|
|
Each user can be re-configured to perform only certain actions (e.g. access specific cameras remotely))
|
|
I/O Card
|
4 sensor inputs and 4 relay outputs control inlcuded in package. On analog modem DVR only.
|
|
Up to 96 Sensors/Relays possible with external third party I/O Box (Moxa brand) for IP NVR or DVR
|
