Model
|

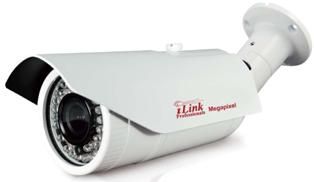

CPV-MPIRVFB-2SN
|
|
System
|
Flash：16MB
|
|
|
RAM：128MB
|
|
Image Sensor
|
Full HD High Quality 1/2.8” Sony Exmor CMOS Image Sensor
|
|
Sensitivity
|
0 Lux (IR ON)
|
|
IR LEDs
|
42PCS
|
|
IR Range
|
35M
|
|
Lens
|
Varifocal 2.8-12mm F1.4
|
|
|
Removable IR-cut filter for day & night function
|
|
|
H.264: 1920x1080 at 25fps
|
|
|
H.264: 1280x720 at 30fps
|
|
Video
|
H.264: 640x480 at 30fps
|
|
|
Compression: H.264, MJPEG Streaming: Dual Codec (H.264 JPEG) Selectable
|
|
|
Support Simultaneous multiple streams
|
|
|
Adjustable image size, quality, and bit rate
|
|
|
Time/Date stamp and text caption overlay.
|
|
|
BNC connector for video output, NTSC/PAL video output switch
|
|
Image Settings
|
Adjustable image size, quality, and bit rate
|
|
|
Time/Date stamp and text caption overlay.
|
|
|
Configurable brightness, contrast, saturation, sharpness,
|
|
|
white balance and exposure
|
|
|
AGC / AWB / AES / BLC / WDR
|
|
Networking
|
Interface 10/100 Mbps Ethernet, RJ-45
|
|
|
Supported Protocol IPv4,TCP/IP,DHCP,HTTP,
|
|
|
RTSP,SNTP,DNS
|
|
|
Supported Browser Microsoft Internet Explorer 6.0 or above Safari, Chrome or Firefox
|
|
Alarm and Event
|
Motion Detection
|
|
Management
|
Event notification using SMTP or FTP
|
|
Users
|
8 clients on-line monitoring at the same time
|
|
|
Multi-level user access control with password protection
|
|
Maintenance
|
Supports online firmware upgrade
|
|
I/O
|
RJ-45 Ethernet x 1,DC Jack x1
|
|
IP Rating
|
IP66
|
|
Power
|
DC12V or PoE IEEE802.3af Class 0(optional)
|
|
Max. Power Consumption
|
3.6W(IR OFF),7W(IR ON)
|
|
Weight
|
Net weight: 3lb
|
|
Dimension
|
315 × 88 × 87 mm
|
|
Operating Environments
|
Temperature: 0 ~ 45 °C Humidity: 90%
|
|
UPC
|
855686006101
|
