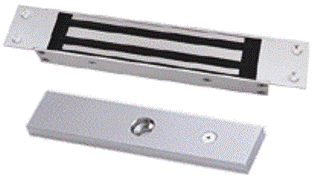

600LBS Maglock with LED
Product ID CPV-ACC6ML
600LBS Maglock with LED

List Price: $299.99
Price: $65.00

Quantity:

Add to cart

« Previous | Next »


 600LBS Mag Lock with LED for Access Control

Product Description

  • Magnetic Lock Size:250Lx48.5Wx25H(mm)
  • Armature plate:180Lx38Wx11H(mm)
  • Holding Force:280kg(600Lbs)
  • Voltage:12/24VDC+10%
  • Current Draw:12V/500mA 24V/250mA
  • Signal Output:Dry Contact, Max Rating of Contact Current 3A
  • LED red indicates the door is unlock, Green indicates the door is lock
  • Suitable for:Wooden door, Glass door, Metal door, Fireproof door
  • Surface Temp:≤+20°C
  • Operating Temp:10~+55°C(14-131F)
  • Suitable Humidity:0~90%(non-condensing)
  • Finishes for Shell:Anodized aluminum
  • Finishes for Magnetic:Zinc
  • Finishes for Armature:Zinc

 Wire Diagram:

NUMBER

COLOR

SYMBOL

DESCRIPTION of  MAG Lock

1

Red

NC

Normal Close

2

Black

GND

GND / 12V-

3

Green

NO

Normal Open (Not used in most application)

4

New wire

COM

Run a wire from power 12V+ to COM

5

Blue

MSG-GND

Door Contact/GND

6

Purple

MSG

Door Contact/MSG
