IP Text Interface for POS Cash Register & ATM and Overlay Text on NVR/IP Camera Video

Product ID CPV-TIVO-IP

List Price: $795.00

Price: $409.00

Ethernet Cable Extensions (Optional)

Text Inserter POS Adaptors or Cables

IP Camera POS / ATM Text Overlay Interface for Single Camera/POS Cash Register

Overlay live POS and ATM transaction data directly onto your IP camera feed in real time. The iTIVO-IP sits between your point-of-sale system and your NVR, linking every receipt line to the matching video frame — so you see the cashier, the product, and the price on one screen. Stop theft, prevent fraud, and simplify investigations with a single device.

DETAIL REMOTE DEMO AVAILABLE FOR LARGER VOLUME ORDERS BY SCHEDULE, CALL OUR OFFICE.

12MP 4K / 8MP 5MP 2MP / 1080p 1.3MP / 720p H.265 & H.264

📹

Live Text Overlay

Transaction data appears on your camera feed in real time — every item, price, and total linked to video.

🤖

Smart AI ParserAI

Automatically recognizes any POS format — Gilbarco, NCR, Clover, Epson, or plain text. No manual setup needed.

📊

Built-in Analytics

Sales reports, employee tracking, exception alerts, and AI-powered predictive analytics — all from the web dashboard.

🔒

Loss Prevention

Flag voids, no-sales, refunds, and suspicious keywords instantly. Get email alerts the moment exceptions happen.

📡

Wi-Fi Hotspot

Built-in Wi-Fi hotspot creates a direct connection to the device — plug in, connect, and configure in minutes.

🌍

Cloud TunnelNEW

Access your device from anywhere in the world — no static IP, no port forwarding, no complex network setup required.

🌐

One LAN Port & option to add 2nd LAN

LAN for camera/NVR network and an optional LAN for POS — fully isolated, no conflicts.

🎥

Up to 12MP

Supports IP cameras up to 12 megapixels — crystal clear video with transaction overlay at any resolution.

Web-Based Management Dashboard

Manage cameras, view live overlay, review transactions, and run reports — all from your browser.

Features

✓

Supports IP cameras up to 12MP, 4K/8MP, 5MP, 2MP/1080p, and 720p

✓

H.265 & H.264 codec — auto-detected

✓

ONVIF & RTSP protocol support with auto-discovery

✓

POS input via Serial RS-232, USB, TCP, or UDP

✓

Smart AI transaction parser — works with any POS formatAI

✓

Protocol support: Epson, Verifone Ruby, Gilbarco, NCR, Clover, Plain Text & many more

✓

Modern web interface for setup, monitoring, and control

✓

Live camera preview with text overlay in browser

✓

Programmable fonts, text size, color, background & transparency

✓

Text overlay position adjustable anywhere on screen

✓

Displays up to 80 lines / 140 characters per line

✓

Programmable scrolling speed, line spacing & screen clear timers

✓

Email alerts on exception keywords (Void, No Sale, Refund, etc.)

✓

Up to 16 programmable exception / flagged transaction keywords

✓

Built-in transaction & exception logging with timestamps

✓

Sales reports — revenue, tax, average transaction, peak hours

✓

Employee performance tracking & by-time analysis

✓

AI Predictive Analytics — forecast sales, items & busy hoursAI

✓

Snapshot capture & video clip recording from web UI

✓

Secure login with password recovery & account lockout

✓

LAN port(s) — one for camera/NVR, optioinal second LAN for POS network or additional cameras

✓

Built-in Wi-Fi hotspot for easy local setup & configuration

✓

Cloud Tunnel — remote access from anywhere, no static IP or port forwarding needed

✓

Wi-Fi for internet connectivity or additional camera access

How It Works

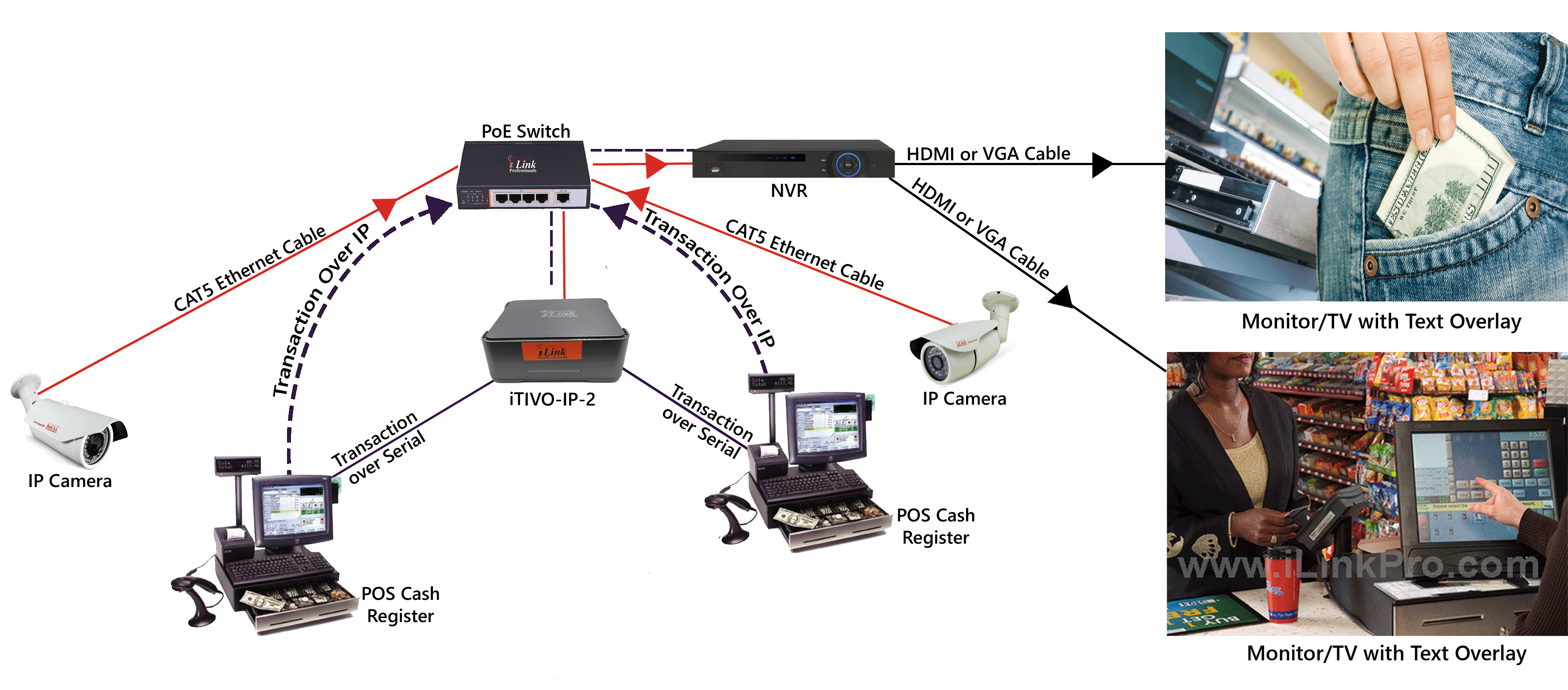

iTIVO-IP Network Diagram — POS to Camera Overlay

POS / Cash Register → iTIVO-IP → IP Camera feed with live transaction overlay → NVR recording

Specifications

Technical Specifications
Camera Support	1 IP Camera (single channel)
Resolutions	12MP, 4K/8MP, 5MP, 2MP/1080p, 1.3MP/720p
Video Codec	H.265 (HEVC) & H.264 — auto-selected
Camera Protocol	ONVIF & RTSP with auto-discovery
POS Data Input	TCP, UDP, Serial RS-232, USB Serial - Text forwarding also available via TCP and UDP protocol
POS Protocols	Verifone Ruby Epson, Gilbarco XML/Plain Text, NCR, Clover, Plain Text, Smart AI Auto-Detect
Overlay Text	Up to 25 lines, 60 characters per line
Exception Keywords	13 Fixed and up to 16 programmable keywords with email alerts
Transaction Logging	Up to 4,000+ transactions with timestamps (configurable retention)
Network — LAN 1	Gigabit Ethernet (RJ-45) for camera / NVR network
(Optional) Network — LAN 2 with DHCP Server Support	Gigabit Ethernet (RJ-45) for Cameras or POS network - Option to enable a DHCP Server to provide IP address to cameras connected to LAN2
Network — Wi-Fi	Built-in Wi-Fi for internet access or camera connectivity
Wi-Fi Hotspot	Built-in hotspot — connect directly for quick local setup
Cloud Tunnel	Remote access from anywhere — no static IP, no port forwarding required
Management	Web-based dashboard (accessible from any browser on the network or remotely via tunnel)
Power Supply	12VDC (included)
Local & Remote Application	Desktop browser, Mobile Browser, Windows desktop application

Compatibility

POS Systems & Cash Registers

Gilbarco Passport
Verifone Ruby 1 & Ruby 2
NCR / NCR Silver
Clover POS
Epson POS Printers
Sharp Cash Registers
Radiant Systems
Dresser Wayne Nucleus
Square POS
Toast POS
Most serial & network POS systems

Serial & IP Device Interfaces

Cash Registers & EPOS
POS Systems & Terminals
ATM Machines
Receipt Printers
Barcode Readers / Scanners
Scales & Weighing Systems
Radar / Speed Guns
GPS Systems
Access Control Panels
Kiosks & Self-Checkout
Most RS-232 serial devices

Need to overlay text on two cameras?
Check out the iTIVO-IP2 — Dual Camera POS / ATM Text Overlay Interface →

Included Free

One Full Year of Cloud Tunnel Access — On Us

Every iTIVO-IP includes a full year of Cloud Tunnel access, free. Securely reach your device from anywhere to change settings, pull sales & exception reports, and search your transaction logs — with no static IP and no port forwarding to set up.

Prefer to keep everything on-site? Your iTIVO-IP always works on your own network — connect directly by its local IP address, or set up a static IP with port forwarding if you like. The tunnel simply makes remote access effortless, with nothing to configure.

After the first year, keep remote tunnel access for just $12/month — far less than the cost and hassle of a dedicated static IP and port-forwarding setup. Renewal is completely optional; your iTIVO-IP keeps recording and overlaying transactions either way.

Datasheet / PDF download coming soon
See iTIVO-IP in Action — Live POS Text Overlay Demos
POS video text overlay & AI loss prevention on existing IP cameras / NVR — Gilbarco Passport, Verifone Ruby & C18

Gilbarco Passport

Verifone Ruby 2 / Ruby Ci / Topaz

Verifone C18

Square POS

How It Works

One small box between your POS and your cameras

POS / REGISTER

Gilbarco, Verifone, NCR, Clover, Square & more send live transaction text

→

iTIVO-IP

Parses the data, overlays it on the video, and logs every transaction

→

IP CAMERA

Any ONVIF / RTSP camera shows the receipt line on the live picture

→

NVR

Records video with the text burned in — searchable forever

Own It — Don't Rent It

iTIVO-IP vs. typical cloud / subscription systems

iTIVO-IP

Typical Cloud / Subscription

Pricing

One-time purchase

Monthly / annual fees

Monthly fees

None, ever

Ongoing, often per camera

Where your video lives

On-premise — stays on site

In the vendor's cloud

Uses your existing cameras

Yes — any ONVIF / RTSP

Often requires their hardware

AI forecasting & reports

Included

Usually a higher tier / add-on

Remote access

Free private tunnel

Tied to subscription

Ownership

You own the box & data

Access ends if you stop paying
