Model
|
CPV-PTZIRAW5X-5MP
|
Camera
|
Image Sensor
|
1/2.8 5.0Megapixels Sony IMX335 CMOS
|
Effective Pixels
|
5.0 MP
|
Night Vision
|

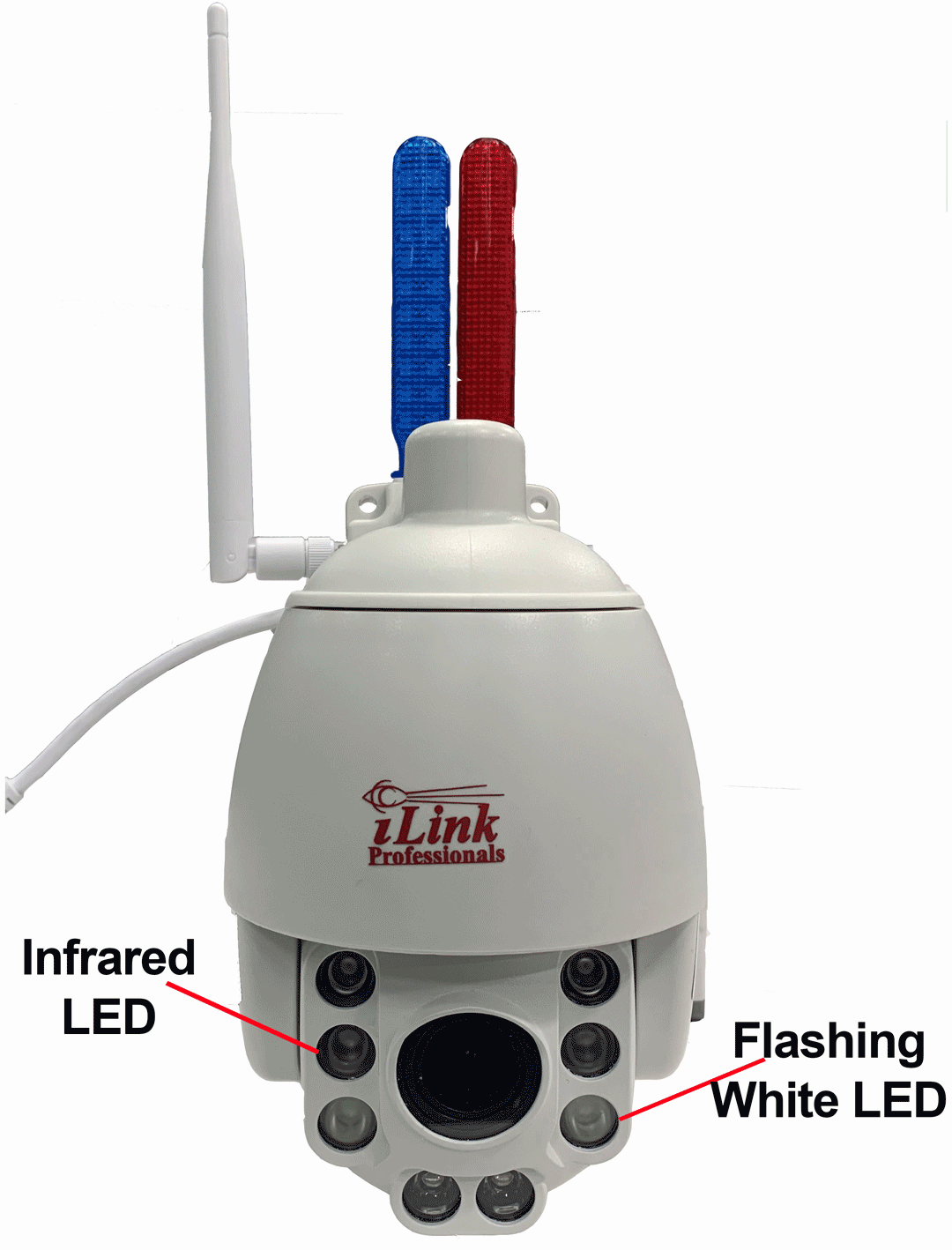

2pcs white led+6pcs IR LED 40M night vision
|
Min. Illumination
|
ColorLº0.01Lux@ (F1.6, AGC ON) B/W: 0. Lux
|
Zoom
|
5X, f=2.7-13.5mm, D/N(ICR-Cut)
|
Day/Night
|
Day / Night / External control£¨IR Cut Filter£©
|
SNR
|
≧50dB (AGC OFF)
|
WDR
|
Super WDR ≧120dB
|
AGC
|
Auto / Manual
|
White balance
|
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
Digital noise Reduction
|
DNR,3DNR
|
Shutter speed
|
1/1-1/10,000s
|
Network
|
Video Compression
|
H.265 H.264 Main Profile/M-JPEG
|
Streams
|
3 streams
|
Frame Rate
|
Main stream:
|
2592x1944, 1-25(30) fps; 1920*1080, 1-25(30) fps
|
Sub-stream:
|
1280*720, 480*640, 1-25(30) fps; 480 *360 1-25(30) fps
|
352*288, 1-25(30) fps; 176*144, 1-25(30) fps
|
MJPEG:
|
2592*1944, 1920*1080, 1280*720, Close
|
Bitrate
|
CBR/VBR, bitrate£º96k~6M bps variable
|
Audio Compression
|
G711¬PCM
|
P2P
|
Android & IOS
|
Protocols
|
TCP/IP, HTTP, DHCP, DDNS, RTP, RTSP, PPPOE, SMTP, NTP, UPNP
|
Motion detect
|
Support
|
Onvif
|
Onvif 2.4
|
Network
|
10/100M Base-TX Ethernet, RJ45 Connector
|
Mini SD Card
|
Up to 128GB(Optional)
|
Dome Features
|
CPU Type
|
32-bit ARM CPU
|
Address
|
0~128(soft address and hard address)
|
Pan Range
|
0°~355°, Horizontal
|
Tilt Range
|
0°~100°, Vertical
|
Manual pan speed
|
0.1~30º/S
|
Manual tilt speed
|
0.1~30º/S
|
Preset points
|
128
|
Other function
|
8 Tour, Intelligent Three-dimensional Scan, 8Pattern group, Operation recall, Manual continued Auto Scan
|
General
|
Work temperature
|
External -10℃~50℃
|
Work Humidity
|
0%~90% (Non condensing)
|
Power
|
DC12V2A
|
WEIGHT
|
1000g
|
