Product CPV-APBridgeW-3M

Product ID CPV-APBridgeW-3M

List Price: $275.00

Price: $149.00

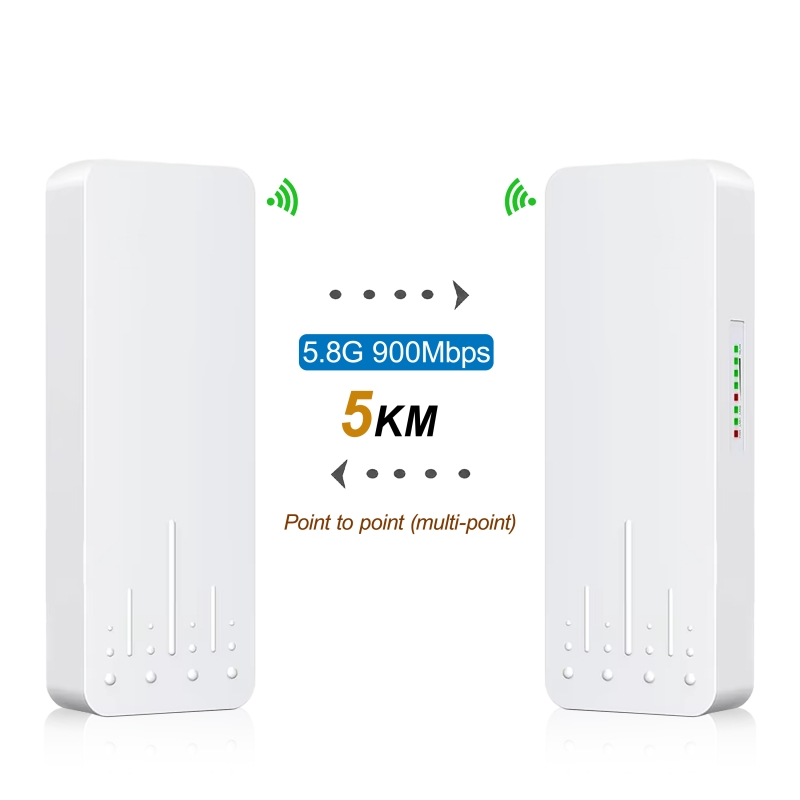

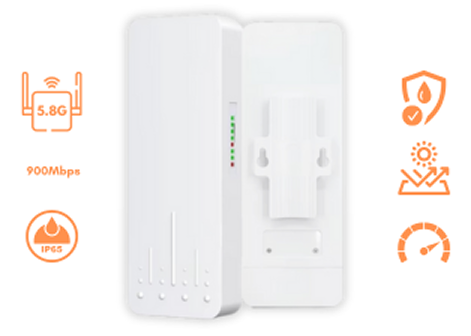

High-Performance Outdoor Network Bridge - 5.8GHz 802.11n Technology with 900Mbps Wireless Speed

Key Features:

• Supports 5.8GHz 802.11n MIMO wireless technology for high-speed connectivity up to 900Mbps
• Unique digital tube matching technology for easy point-to-point equipment matching (up to 8 points)
• 1000Mbps network interface for ultra-fast data transfer
• Flexible power supply options: 24V PoE network cable or 12V 1A DC local power supply
• Power supply distance up to 50-70m (depending on cable material)
• Outdoor IP65-rated protection against wind, rain, dust, and sunlight for all-weather durability
• Built-in 14dBi bipolar plate-shaped antenna for high gain and enhanced wireless coverage
• Easy and quick installation for seamless deployment
• High-performance wireless transmission for long-distance outdoor applications
• High reception sensitivity and bandwidth for stable network performance

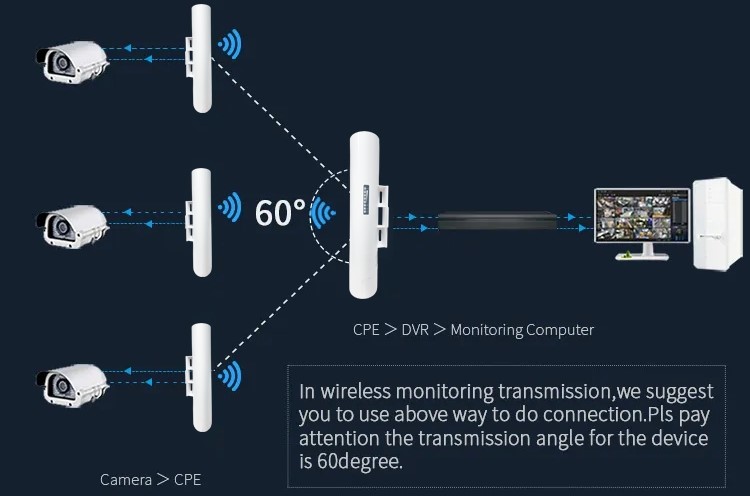

ONE-TO-MULTI-POINT CONNECTION FOR COST-EFFECTIVE CPE REDUCTION

HIDE BRIDGE SIGNALS TO PREVENT UNAUTHORIZED ACCESS

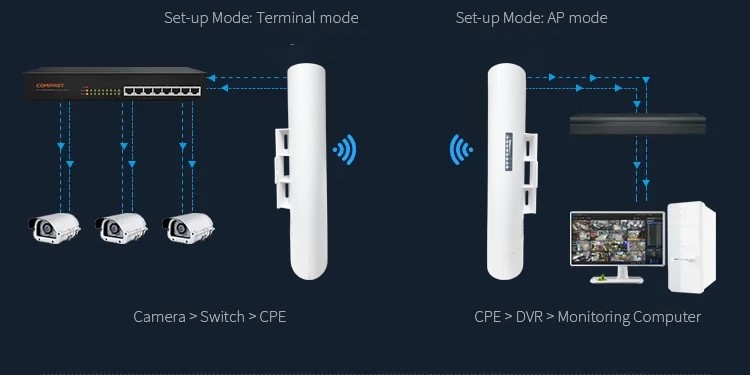

CONNECT MULTIPLE CAMERAS USING COMFAST CPE & SWITCH

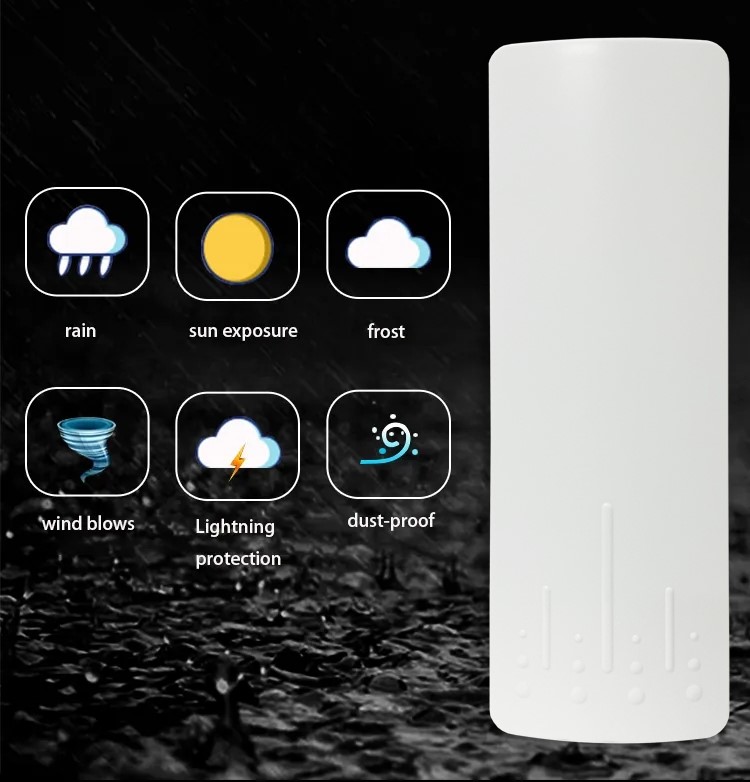

IP65 WEATHERPROOF DESIGN FOR HARSH ENVIRONMENTS

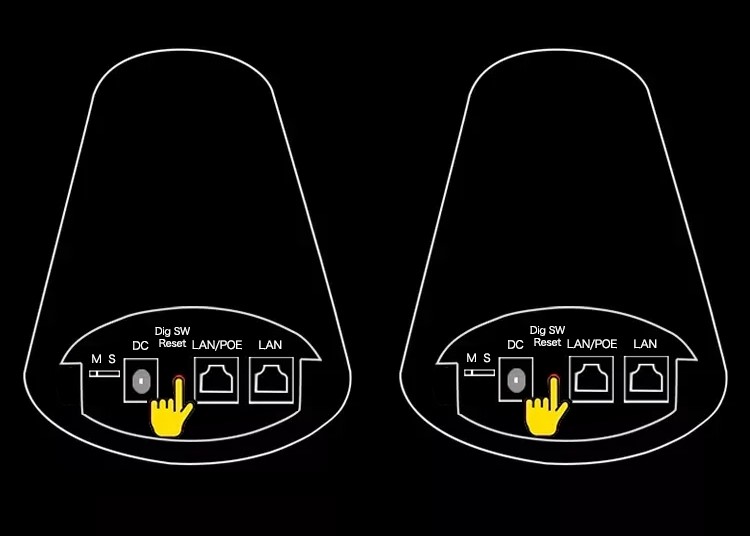

ONE-CLICK BRIDGE CONNECTION WITHOUT HASSLE

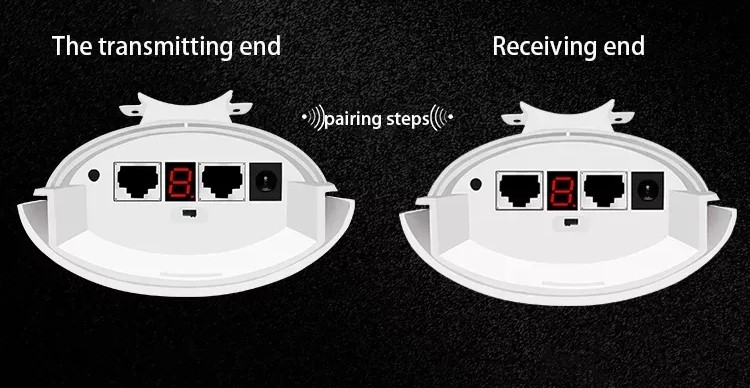

THREE-SECOND DIGITAL CHANNEL SETUP TO AVOID INTERFERENCE

WHERE TO APPLY THIS WIRELESS NETWORKING SOLUTION

Product Specifications:

Model	CPV-APBridgeW-3M
hardware profiles
Main chip	MTK7620DA+7612E
dominant frequency	580MHz
Wireless technology	5.8g:300M 802.11b/g/n/ac MIMO technology
Memory	64MB DDR RAM
Flash	8MB
network interface	110/100/100 Mbps Adaptive network interface 110/100/1000 Mbps Adaptive network interface
button	1*Digital Switch / reset button，Short press on the digital tube display value to add one， Press it long for 15 seconds to restore the factory settings
guiding lights	LAN network interface status indicator, power indicator
Power	24V 0.5A POE power supply； DC 12V 1A，capacity factor﹤10W
work environment	Temperature ：-30℃～+55℃（work），-40℃ ～+70℃（storage) temperature（Non-condensation）：10％～90％（work），5％～95％（storage）
Product size	L24.5W9H4.5cm
product weight	0.45kg
Antenna	14dbi directional plate antenna （Horizontal wave half Angle 60°，Vertical wave half Angle 60°）
RF characteristics
Frequency range	ISM wave range: 4.900GHz ~ 5.850GHz
Channel distribution	5.8g：36、40、44、48、52、56、60、64、149、153、157、161
modulation mode	OFDM=BPSK,QPSK,16-QAM,64-QAM， 256-QAM;DSSS= DBPSK,DQPSK,CCK
Output power	11a @54M:20±2dB, @6M:23±2Db 11n 20MHz：@MCS7:23±2dB, @MCS0:23±2dB 11n 40MHz：@MCS7:20±2dB, @MCS0:23±2dB 11ac 40MHz @MCS7:20±2dB, @MCS0:23±2dB 11ac 80MHz @MCS7:20±2dB, @MCS0:23±2Db
receiving clarity	11a: -65dbm@54Mbps, -81dbm@6Mbps 11n 20MHz: -64dbm@MCS7, -82dbm@MCS0 11ac 40MHz：-61dbm@MCS7, -79dbm@MCS0 11ac 80MHz: -58dBm@MCS7 -76dBm@MCS0
EVM	802.11n: ≤-28 dB 802.11a: ≤-25 dB
Frequency deviation	±20ppm
Software features
working modes	Main AP ,second AP（Switch ）
Main network mode	point to point, point to-point (within 8 points)
management mode	WEB telemanagement
Bridge configuration	Wireless mode: bridge access point / bridge client Access point: bridge ssid / encryption mode / bridge password / protocol / bandwidth / channel / power Client: bridge ssid / encryption mode / bridge password / paired-end mac address / channel / power
network settings	Automatic acquisition / static ip
system	Password modification / reset / upgrade
