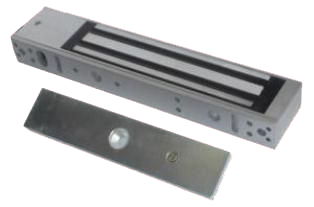

1200LBS MagLock, Door Magnetic Locks

Product ID CPV-ACC12ML
List Price: $325.00
Price: $95.00

 1200LBS Mag Lock with LED

Product Description

  • Magnetic lock Size: 265Lx65Wx38H(mm) or 10Lx3Wx1.5H
  • Holding Force: 600KG or 1322.77 Pounds
  • Voltage: 12/24VDC+10%
  • Current Draw: 12V/500mA 24V/250mA
  • Signal Output: Dry Contact, Max Rating of Contact Current 3A
  • LED red indicates the door is unlock, Green indicates the door is lock
  • Suitable for: Wooden door, Glass door, Metal door, Fireproof door
  • Surface Temp: ≤ +20° C
  • Operating Temp: 10~+55° C(14-131F)
  • Suitable Humidity: 0~90%(non-condensing)
  • Finishes for Shell: Anodized aluminum
  • Finishes for Magnetic: Zinc
  • Finishes for Armature: Zinc

Wire Diagram:

NUMBER

COLOR

SYMBOL

DESCRIPTION of  MAG Lock

1

Red

NC

Normal Close

2

Black

GND

GND / 12V-

3

Green

NO

Normal Open (Not used in most application)

4

New wire

COM

Run a wire from power 12V+ to COM

5

Blue

MSG-GND

Door Contact/GND

6

Purple

MSG

Door Contact/MSG
Price: $95.00
