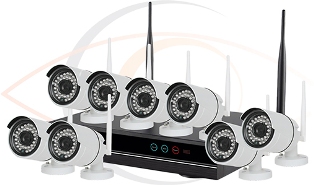

CCTV HD 8 Port Wireless NVR Surveillance System w/ Eight Wireless 2MP Cameras

Product ID CPV-HDWDIY1TB-8
ISBN 855686006323
List Price: $795.00
Price: $495.00

The CPV-HDWDIY1TB-8 is a 8 channel HD CCTV surveillance system kit that includes 1TB Hard Drive, eight Wireless 2MP Wireless HD CCTV Cameras, and an 8 Channel Wireless DVR. The wireless bullet camera is a 2MP infrared surveillance camera with a 75 degree viewing angle that is capable of recording at 15 frames pers second at (1920 x 1080). These cameras also come with built in ICR (Infrared Cutfilter Remover) that blocks out any unused infrared lighting and only allows for visible light to pass to create a much clearer image. This camer has 36 LED's that enables the camera to see in the dark for up to 90 feet. Users can remotely monitor their cameras from an iPhone, iPad, or Android.

NIGHT VISION FROM UP TO 90FT AWAY

INSTANTLY RECEIVE ALERT NOTIFICATIONS FROM APP WHEN MOTION IS DETECTED

REMOTE ACCESS FROM ANYWHERE

Key Features:

  • 2.0MP High Performance Image Sensor
  • 1080p HD Video Resolution (1920 x 1080)
  • 15 Frames Per Second Recording
  • Wireless IEEE 802.11b/g/n Compliance
  • 3.6mm Fixed Lens (75.7° Angle of View)
  • 30M IR Distance
  • ICR (Infrared Cut Filter)
  • WDR (Wide Dynamic Range)
  • IP66 Weatherproof Housing - Indoor / Outdoor
  • DC12V 1A

MODEL NO.

CPV-HDWDIY1TB-8

Operating System

Embedded Linux operating system

VIDEO/IMAGE

Image Code Control

Image code quality adjustable, variable bitstream and constant bitstream optional

Dual Stream

Video Standard

1080P

Monitoring Image Quality

1080P

Image Motion Detection

Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)

Recording Playback Quality

4ch playback simultaneously

Recording Mode

Support manual, auto, dynamic detection, alarm trigger record mode

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup

Recording Storage

Local HDD, network

VIDEO INPUT

IP Video Input

8*1080P IP camera

VIDEO OUTPUT

HDMI Output

1 CH, 1920*1080P

VGA Output

1 CH

ALARM MANAGEMENT

Events Trigger

Built-in motion detection, schedule

Notification Method

Alarm, Buzzer, E-mail, FTP

WIRELESS

Standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Signal Rate

Up to 300Mbps

Frequency Range

2.4-2.4835GHz

Transmit Power

<24dBm

Modulation Mode

802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

HARD DISK

Interface Type

1* SATA interface

Capacity

Support up to 8TB SATA HDD for update

INTERFACES

Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

Network Interfaces

1* 10/100Mbps Auto MDI/MDIX RJ45 WAN port

USB Interface

2* USB 2.0 Port

LED Indicators

Power, Hard Disk ,RUN

Antennas

2* 5dBi Detachable Antenna, SMA Connector

Power Supply

DC 12V/2A (Output)

SOFTWARE

WAN Type

DHCP, Static IP, PPPoE

Port Forwarding

Virtual Servers, Port Triggering, UPnP (play&plug), DMZ, FTP Private Port

LAN

DHCP Client, DHCP Server

Mobile Surveillance

Support iPhone, Android smart phone for remote control

Others

Time Settings,Firmware Upgrade, Backup & Restore

GENERAL

Environment

 Operating Temperature: -10℃~55℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Dimensions(L x W x H)

257x210x45mm

Download High Resolution PDF
*Specification & Illustrations are subject to change without prior notice
*All other trademarks or registered trademarks are the property of their respective owners.
