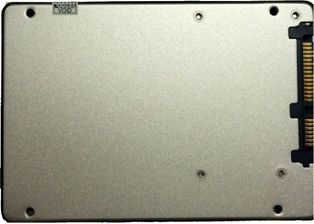

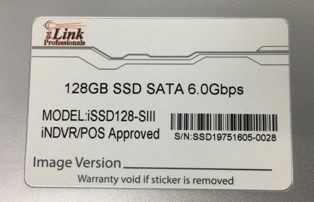

128 GB Solid State Drive SSD Internal SATA III 2.5 inch Drive

System Performance

SATA 128GB/s host interface

Sequential Read

520 MB/S

Sequential Write

175 MB/S

Random Read (4K) QD=32

44322 IOPS

Random Write-Sustained(4K) QD=32

1257 IOPS

* Actual performance may vary depending on use conditions and environment
* Note
1. Sequential Performance measured using CrystalDiskMark 3.0.1 x64
2. Random Performance measured using IOMeter 2008 with queue depth 32
3. Measurements are performed on whole LBA range
4. Write cache enabled
5.1MB/sec = 1,048,576 bytes/sec was used in sequential performance
-System: Intel B75 Chipset Intel Celeron CPU G1610@2.6GHz 4GB DDR3
-OS: Windows 7 x64

Drive Capacity

Unformatted Capacity

128GB

Total Number of User-Addressable
Sectors in LBA Mode

123666432

Bytes per Sector

512 Bytes

NOTE: 1 Megabyte (MB) = 1 Million bytes; 1 Gigabyte (GB) =1 Billion bytes
*Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

System Reliability

MTBF

1,500,000 Hours

2.5inch SSD physical dimensions and Weight

Height (mm)

7.0 ± 0.15mm

Width (mm)

69.85 ± 0.15mm

Length (mm)

100.18 ± 0.15mm

Weight (gram)

100 max.

Supply Voltage

Allowable voltage

3.3V + 5%

Allowable noise/ripple

100mV p-p or less

System Power Consumption - Input Voltage 3.3±5% (mW)

Parameter

128GB

Sequential Read

1353

Sequential Write

1805

Random Read

1119

Random Write

1805

Stand-by

285

Partial

81

Slumber

25

DEVELOP

4.7

Note:
CPU : Intel Core i5-2400
DRAM Type : DDR3 1600 4GB
MB model : GIGABYTE GA-Z68X-UD7-B3
OS : Win 7 64bit AHCI
Test Tool : IO Meter
IPM Host : ULINK Power Hub
TBD: To Be Determined

Environmental Specifications

Features

Operating Non-Operating

Temperature

0°C to 70°C -40°C to85°C

Humidity

5% to 95%, non-condensing

Vibration

7~800Hz, 3.08Grms, 30min/axis(X,Y,Z)

Shock

1500G, duration 0.5ms, Half Sine Wave
