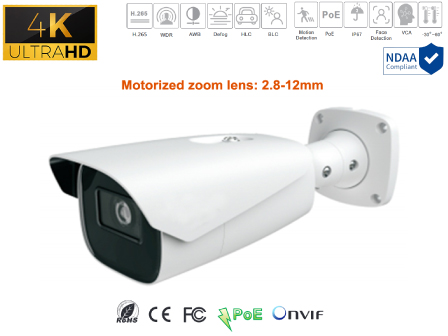

Model |
CPV-SMIRMVFB-4KAI |
|
Camera |
|
Image Sensor |
1/2.8" CMOS |
|
Image Size |
3840 x 2160 |
|
Electronic Shutter |
1/3s ~ 1/100000s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.01 Lux @F1.4, AGC ON; 0 Lux with IR |
|
Lens |
2.8 ~ 12 mm @F1.4, motorized |
|
Field of View |
Horizontal: 97° ~ 32°; Vertical: 57° ~ 18°; Diagonal: 115° ~ 36° |
|
Lens Mount |
Φ14 |
|
Day & Night |
ICR |
|
Wide Dynamic Range |
120dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
S/N Ratio |
≥50dB |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~ 360 ° |
|
Image |
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile/ Main Profile/ High Profile |
|
Resolution |
8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (2592 × 1944), 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 |
|
Main Stream |
8MP / 6MP / 5MP / 4MP / 2K / 3MP / 1080P/ 720P (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) HFR mode: 1080P/720P (60Hz: 1 ~ 60fps; 50Hz: 1 ~ 50fps) |
|
Sub Stream |
1080P / 720P / D1 / 480x240 (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) |
|
Third Stream |
720P / D1 / CIF / 480x240 (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) |
|
Bit Rate |
64 Kbps ~ 12 Mbps |
|
Bit Rate Type |
VBR/CBR |
|
Audio Compression |
G711A/U |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|
ROI |
Each ROI is to be configured separately. |
|
Interfaces |
|
Network |
RJ 45 10M/100M self-adaptive Ethernet port CVBS |
|
Video Output |
Output (BNCx1) |
|
Audio |
1CH audio input; 1Ch audio output; 1CH built-in MIC |
|
Storage |
Built-in micro-SD card slot; up to 256GB |
|
Reset |
Yes |
|
Alarm |
1CH alarm input; 1CH alarm output |
|
Intelligent Analytics (Smart Events) |
|
Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
|
Statistics |
Target counting by line/area, heat map |
|
Exception Detection |
Scene change, video blur, and abnormal color detection |
|
Face Detection |
Face detection and face capture |
|
Other Events |
Abandoned/missing object detection/crowd density detection |
|
Video Metadata |
Simultaneously, it captures the human body, motor vehicle, and non-motor vehicle and extracts 13 human features, five motor vehicle features, and one non-motor vehicle feature. |
|
DORI Distance |
|
Lens |
2.8 ~ 12mm (W) |
2.8 ~ 12mm (T) |
|
Detect |
80m (262ft) |
273m (896ft) |
|
Observe |
32m (105ft) |
109m (358ft) |
|
Recognize |
16m (52ft) |
55m (180ft) |
|
Identify |
8m (26ft) |
27m (89ft) |
|
Functions |
|
Remote Monitoring |
Web Browser/ TVT NVMS2.0/ NVR/ Mobile APP |
|
Web Browser |
IE11 (plug-in required)/ Chrome 89.0+/ Edge 89.0+/ Firefox 87.0+/ Safari 14.0+ |
|
Online Connection |
Support simultaneous monitoring for up to 10 users;
Support multi-stream real-time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802. 1x, UPnP, HTTPs, HTTP POST, QoS |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro-SD card storage |
|
Smart Alarm |
Motion detection; sensor alarm, SD card error; SD card full, IP address conflict, cable disconnection |
|
General Function |
Watermark, video mask, heartbeat, image distortion correction, corridor pattern |
|
Security |
Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802. 1x authentication, basic and digest authentication for HTTP/HTTPs |
|
PoE |
Yes, IEEE802.3af |
|
Ingress Protection |
IP67 & IK10 |
|
Others |
|
Power Supply |
DC 12V / PoE |
|
Power Consumption |
< 12W |
|
Storage Conditions |
-30°C ~ 65°C (-22°F ~ 149°F), Humidity: Less than 95% (non-condensing) |
|
Operating Conditions |
-30°C ~ 65°C (-22°F ~ 149°F), Humidity: Less than 95% (non-condensing) |
|
Dimensions (mm) |
278.3 x 100.2 x 88.8 |
|
Weight (net) |
Approx. 1.04KG |
|
Installation |
Ceiling mounting; Wall mounting |
|
Certificate |
CE, FCC, UL |
|
Environmental Protection |
Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH (EC1907/2006) |
