Standards Compliance
|
IEEE 802.11a / b/ g
|
|
IEEE 802.3
|
|
IEEE 802.3u
|
|
IEEE 802.3af
|
|
SDRAM
|
32 M Byte
|
|
Flash
|
8 M Byte
|
|
Radio Frequency Type
|
DSSS/ OFDM
|
|
Modulation
|
IEEE 802.11a : OFDM with BPSK, QPSK, 16QAM, 64QAM
|
|
IEEE 802.11b: CCK,DQPSK,DBPSK
|
|
IEEE 802.11g : OFDM with BPSK, QPSK, 16QAM, 64QAM
|
|
Frequency Band
|
IEEE 802.11a:
|
|
5.15 ~ 5.25 GHz (lower band)
|
|
5.25 ~ 5.35 GHz (middle band)
|
|
5.725 ~ 5.825 GHz (hi-band)
|
|
IEEE 802.11b/g:
|
|
America/FCC: 2.412~2.462 GHz (11channels)
|
|
Europe CE/ETSI: 2.412~2.472 GHz (13channels)
|
|
Transmission Power
|
IEEE 802.11a: 20 dBm
|
|
IEEE 802.11b: 20 dBm
|
|
IEEE 802.11g: 20 dBm
|
|
Transmission Rate
|
IEEE 802.11a: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 and 108Mbps
|
|
IEEE 802.11b: 1/ 2/ 5.5/ 11Mbps
|
|
IEEE 802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 and 108Mbps
|
|
Access Point Interfaces
|
Auto sensing MDI/MDI-X Ethernet 10/100Base-TX: RJ-45
|
|
Sensitivity
|
IEEE 802.11a: -70dBm @ 54Mbps, PER<10%
|
|
IEEE 802.11b: -86dBm @ 11Mbps, PER < 8%
|
|
IEEE 802.11g: -72dBm @ 54Mbps, PER < 10%
|
|
Antenna Type
|

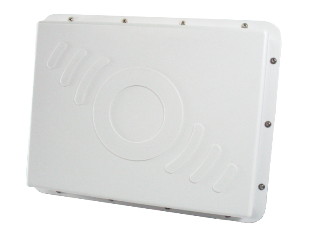

Integrated 18dBi 5.0GHz flat panel antenna
|
|
Security Systems
|
64-bit/ 128-bit/ 152-bit WEP encryption; Wi-Fi Protected Access (WPA) and WPA2
|
|
Wireless Setting
|
Operation Mode – AP / Wireless Client / Repeater / Wireless Bridge (WDS) PtP and PtMP
|
|
Wireless Mode – 11a/ 11b/ 11g/ Super A/ Super G
|
|
Software/Firmware
|
Site Survey
|
|
DHCP Client
|
|
Suppressed SSID
|
|
Support DFS and TPC
|
|
Support VLAN
|
|
Support Multiple SSID
|
|
Wireless access control by MAC address (deny or accept)
|
|
WPA Support (WPA personal and enterprise)
|
|
Web-based configuration via popular browser (MS IE, Netscape…)
|
|
Windows “Locator” program to help find IP in DHCP client mode
|
|
Firmware upgrade and configuration backup via Web
|
|
Rouge AP Detection
|
|
Reset to default by WebUI
|
|
SNMP V2.0
|
|
Operating Environment
|
Operating Temperature: -30 ~ +70°C
|
|
PoE
|
DC 48 Volt ± 5%; 0.4A (Max.); AC adapter AC 110V ~ 240V
|
|
Regulatory Approval
|
|
|
Network Management
|
Windows 2000/XP
|
|
System OS Support
|
