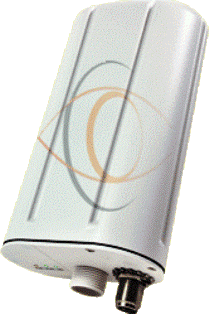

Model
|
CPV-AP5
|
|
Standards Compliance
|
IEEE 802.11a
|
|
IEEE 802.3
|
|
IEEE 802.3u
|
|
IEEE 802.3af
|
|
SDRAM
|
32 M Byte
|
|
Flash
|
8 M Byte
|
|
Radio Frequency Type
|
DSSS / OFDM
|
|
Modulation
|
IEEE 802.11a: OFDM with BPSK, QPSK, 16QAM, 64QAM
|
|
Frequency Band
|
IEEE 802.11a:
|
|
5.15 ~ 5.25 GHz (lower band)
|
|
5.25 ~ 5.35 GHz (middle band)
|
|
5.725 ~ 5.825 GHz (hi-band)
|
|
Transmission Power
|
IEEE 802.11a: 20dBm
|
|
Transmission Rate
|
IEEE 802.11a: 6/9/12/18/24/36/48/54 and 108Mbps
|
|
Access Point Interfaces
|
Auto sensing MDI/MMDI-X Ethernet 10/100Base-TX: RJ-45
|
|
Sensitivity
|
IEEE 802.11a: -70dBm @ 54Mbps, PER<10%
|
|
Antenna Type
|
N-type female / External high gain antenna ( optional )
|
|
Security Systems
|
64-bit/128-bit/152-bit/ WEP encryption and Wi-Fi Protected Access(WPA) and WPA2
|
|
Wireless Setting
|
Operation Mode – AP / Repeater / Wireless Client Infrastructure and Ad-hoc / Wireless Bridge(WDS)
|
|
Wireless Mode – 802.11a / 802.11 Super A static
|
|
Software/Firmware
|
Site Survey
|
|
DHCP Client
|
|
Suppressed SSID
|
|
Station separation
|
|
Support DFS and TPC
|
|
Support VLAN and Priority
|
|
Support Multiple SSID, isolation and Multi-BSSID
|
|
Wireless access control by MAC address (deny or accept)
|
|
WPA and WPA2 Support (WPA personal and enterprise)
|
|
Web-based configuration via popular browser (MS IE, Netscape…)
|
|
Windows “Locator” program to help find IP in DHCP client mode
|
|
Firmware upgrade and configuration backup via Web
|
|
Support WME(QoS), SNTP and Syslog
|
|
Support Rouge AP Detection and Firmware auto Update
|
|
Reset to default by WebUI
|
|
Support SNMP V2.0
|
|
Operating Environment
|
Operating Temperature: -30 ~ +70°C
|
|
Power
|
DC 48 Volt ± 5%; 0.4A (Max.); AC adapter AC 100V ~ 240V
|
|
Regulatory Approval
|
|
|
Network Management
|
Windows 2000/ XP/ Vista Home BASIC
|
|
System OS Support
|
|
Warranty
|
One year limited
|
