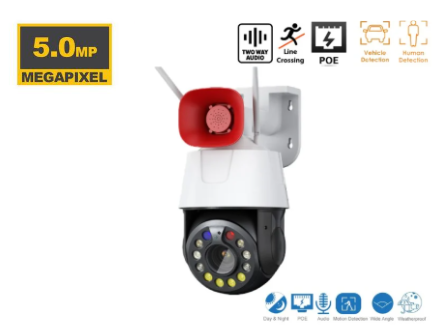

Model |
CPV-PTZIRHT33XWL-5MP |
|
Camera |
|
Operating System |
Embedded Linux OS |
|
Processor |
1080P: T31, 5MP: GK7205 |
|
Sensor |
1080P SONY307, 5MP SONY335 |
|
Lens Interface Type |
M12 |
|
Lens |

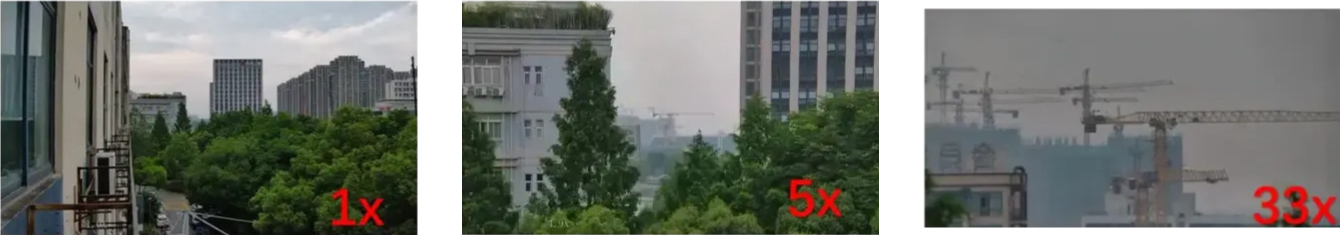

2.7-94mm 20X Optical Zoom Auto focus lens |
|
View angle |
89.9 degree - 26.2 degree |
|
Min. Illumination |
0.05lux/0lux (IR on) |
|
Day & Night Mode |
AUTO IR-CUT |
|
Night vision distance |
6pcs array infrared LEDs+4pcs white LED+2pcs Alarm LEDs |
|
Alarm Light |
Red and blue flash light |
|
Video Compression |
H.265+ |
|
Video Code Rate |
32 - 6144Kbps. supports constant bitrate/variable bitrate |
|
Video Frame Rate |
25fps |
|
Image Settings |
Brightness, saturation, contrast, Sharpness, Exposure, flip, mirror |
|
Image enhancement |
Backlight compensation, Automatic white balance, Digital WDR, 3D digital noise reduction |
|
Function |
|
Motion detection |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the specified mailbox, alarm write pictures and videos to Micro-SD card |
|
OSD |
Support camera name, date and time information superimposed |
|
User Management |
Supports user and rights management |
|
Simultaneous viewers |
Maximum supports 4 users to simultaneous browse |
|
Network protocol |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc |
|
4G |
|
4G Standard |
FDD-LTE |
|
Frequency Range |
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) |
|
Transmission Rate |
Upload max: 50Mbps, download max: 150Mbps |
|
Security |
WEP, WPA/WPA2, WPA-PSK/ WPA2-PSK |
|
PTZ |
|
Rotation angle |
Horizontal: 0-355 degree, Vertical: 0-90 degree |
|
Horizontal Speed |
12 degree/s |
|
Vertical speed |
12 degree/s |
|
Preset |
Support 8 preset points |
|
Interface |
|
Power interface |
5.5mm power interface |
|
Ethernet |
The Lan port is of no use for this 4G camera, DO NOT CONNECT IT |
|
TF Card Slot |
Maximum support 256GB TF Card, can set the automatic capture and timer recording |
|
Reset button |
Support |
|
General Specification |
|
Power Supply |
DC 12V 3A |
|
Power Day |
Max 8W, Night: max 15W |
|
Operating Temp. |
-20 degree to +60 degree |
|
Operating humidity |
10% to 95% (non-condensing) |
|
Waterproof level |
IP66 |
|
Material |
Aluminium and ABS Material |
|
Installation |
Rack mounting and Ceiling mount |
|
Product size (W x D x H) |
32*26*19cm |
|
Product weight(kg) |
2kg |
|
Accessories |
1*1.5m Power Supply, 1 bag Screws, 1 antenna, 1 manual |
|
Package Size (W x D x H) |
32*26*19cm |
|
Package Weight(kg) |
2Kg |
