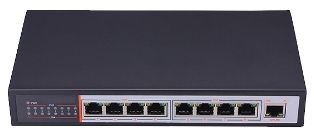

8 Port 10 100 Mbps with PoE plus 1 Gigabit Uplink DVR Port Ethernet Switch

Product ID CPV-SW8G-1
List Price: $347.50
Price: $150.00

CPV-SW8G-1 Series PoE switch can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs),it’s 8 10/100Mbps Auto-Negotiation RJ45 ports with PoE (Power over Ethernet) function, the ninth port is Gigabit Uplink, the distance of power supply is 100 Meter. There is no need to worry about the damage of standard POE or Non-POE Devices, it will be power off when the POE Device is not connecting. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Standard/ Protocols

IEEE802.3, 802.3u, 802.3af, 802.3x

CSMA/CD, TCP/IP

Basic Function

Wire-speed Performance

MAC Address Auto-Learning and Auto-aging

IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Bandwidth

3.6 Gbps

MAC address

8K

Data RAM Buffer

1MB

Power support

Max power: 15.4W for each POE port

48V 2A Power adapter

Transmission Method

Store-and-Forward

Ports

8 10/100/Mbps Auto-Negotiation PoE RJ45 ports (Auto MDI/MDIX), 9th is Gigabit Uplink port

Network Media

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators

Power, Link/Act ( 10/100/1000Mbps)

Safety & Emission

FCC, CE, RoHS

Environment

Operating Temperature: 0°C~50°C

Storage Temperature: -10°C~70°C

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Product Size:

225*121*35 mm

Download Full Resolution PDF
*Specification & Illustrations are subject to change without prior notice
*All other trademarks or registered trademarks are the property of their respective owners
