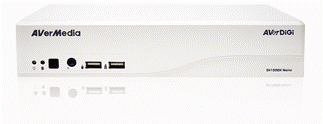

Front Panel Connections |
|
Front panel controls |
IR Extension Port |
|
DVD writer |
Not Included |
|
USB 2.0 |
2 |
|
Rear Panel Connections |
|
Video Inputs (analog) |
8 - BNC connectors |
|
Video Inputs (IP) |
4 video H.264/MPEG4/JPEG data streams |
|
Video Output |
1 - VGA out, 2 - Spot Monitor Out |
|
Audio Input/Output |
4/1 |
|
Microphone Input |
0 |
|
Alarm Inputs/Relay Outputs |
4/1 |
|
E-SATA |
1 |
|
USB 2.0 |
0 |
|
Communication |
1x - RS232, 1x - RS485 |
|
AC Power |
Power Button, Power Adapter (12V DC) |
|
Unit |
|
Operating system |
Embedded Linux |
|
Compression (analog) |
H.264 |
|
Video Format |
Analog |
NTSC: 352x240 (CIF), 720x240 (Half-D1), 720x480 (D1) |
|
IP |
Up to 2MP per channel |
|
Recording Rates |
Analog |
Individually Adjustable
(0 - 30fps) |
CIF |
Half-D1 |
D1 |
|
240fps |
120fps |
60fps |
|
IP |
FPS is over 4 channels
at given MP resolutions |
|
H.264 |
MJPEG |
|
1.3MP |
100fps |
25fps |
|
2MP |
N/A |
16fps |
|
Storage |
Capacity |
Supports 1 Internal SATA HDD |
|
eSATA |
1 eSATA connector, Support eSATA RAID |
|
Communication Ports |
RS 485 |
1, Terminal block, Tx+, Tx-, Rx+, Rx- |
|
RS 232 |
1, 9 Pin, Male |
|
Networking |
1x - 10/100 Base-T Ethernet, RJ-45 |
|
Supported IP cameras (support IP PTZ, IP IO, & IP audio if IP cameras built-in) |
AXIS, Panasonic, SONY, Arecont, Mobotix,
BOSCH, IQinvision, JVC, TOSHIBA, VIVOTEK, ACTi,
D-Link, PiXORD, PELCO, Apron, Lilin and more |
|
Operator Interface |
USB mouse, USB PC keyboard, Remote controller
(supports optional IR extension cable) |
|
Browser/Remote Client |
MS Internet Explorer 6+, Windows 2000, XP, VISTA |
|
Mechanical |
|
Dimensions (H x W x D) |
2.1 x 9.2 x 6.3in |
|
Weight |
1.25 lbs (not including optional HDD) |
|
Regulatory |
|
Emissions |
FCC: Part 15, Class A |
