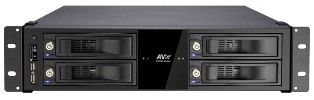

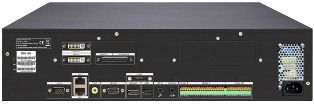

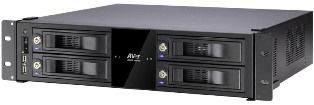

The AVer E5016H full HD Hybrid NVR leads the way for a new generation of high performance, cost-effective network recorders, designed to achieve exceptional image quality and excellent reliability. The E5016H supports up to 5 megapixels per channel and a total of 32 megapixels for all channels. It offers PC-like preview performance (2M @ 120fps) and an impressive throughput rate of 120 Mbps, recording all 16 channels using tri-codec compression.
System
operating system
embedded Linux
total channel number
16
max. IP camera input
max. analog camera input
performance
display (analog)
480 / 400fps (NTSC/PAL)
display (IP)
2M @ 120fps
recording (analog)
compression
H/W H.264
resolution
NTSC: 352 x 240 (CIF), 720 x 240 (Half-D1), 720 x 480 (D1)
PAL: 352 x 288 (CIF), 720 x 288 (Half-D1), 720 x 576 (D1)
frame rate (NTSC/PAL)
CIF: 480 / 400fps
Half-D1: 480 / 400fps
D1: 480 / 400fps
recording (IP)
Up to 5 megapixels per channel, and a total of 32 megapixels for all channels in H.264 / MPEG-4 / MJPEG format
throughput
120 Mbps
storage
internal HDD capacity
4 SATA HDDs (4 removable HDD trays)
internal RAID support
yes (levels 0,1, 5, 10)
external HDD capacity
e-SATA HDD or RAID x 1
iSCSI support
yes
backup
internal DVD-RW
- (supports external DVD-RW)
interface
monitor
VGA output
1 (up to 1920 x 1200)
HDMI output
TV output
1 (supports hybrid multi-quad output)
spot output
1 (supports hybrid full screen output with triggered alarms)
audio
input
16 line-in, 8KHz sampling rate
ouput
1 line-out
MIC
1 line-in
Alarm
sensor (alarm) input
input voltage: max. DC 6V
relay output
4 (NO/NC)
voltage range: AC 125V / DC 30V
switching current: max. 1A
network
Ethernet (RJ45)
2 (10/100/1000 Base-T)
connection
e-SATA
1
RS-232
1 (D-sub 9 pins, male)
RS-485
1 set (Tx+, Tx-, Rx+, Rx-)
USB 2.0
3 (2 ports on front panel, 1 port on rear panel)
support remote viewing
Internet Explorer, Chrome and Firefox
general
electrical
power input
250W power adapter, DC 19V
environmental
operating temperature
0°C to 40°C
operating humidity
90% RH
mechanical
dimensions (W x H x D)
430 x 105 x 410 mm
weight (net)
19 pounds
Download Full Resolution PDF *Specification & Illustrations are subject to change without prior notice
