CCTV Video Balun Passive Twisted Pair Video DC Data

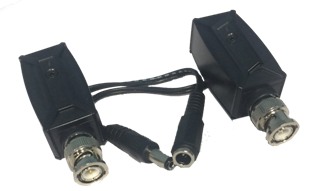

The CPV-UPT130m CCTV video balun pair allows UTP / STP wire to be run up to 130 meters to transmit the video signal from a CCTV camera.  This allows you to use less expensive unshielded twisted pair wire instead of coax cable for closed circuit surveillance systems.

Application

• Send or recieve vido over Unshielded Twisted Pair cable
• Replace coaxial cable to cost - efficient Unshielded Twisted Pair (Cat 5 network cable)
• Fast and easy installation
• Transmit power and data (RS - 485)

Connector

• RJ-45 Socket: Video input/ output, 100 ohm impedance
• BNC Male: Video input/output, 75 ohm impedance
• DC Plug: 2.1 mm x 5.5 mm
• Bare wire: For transmit data

Transmission Distance

• Color Video: More than 300 meters
• Black & White Video: More than 600 meters
• DC: More than 50 meters
• RS - 485: More than 1000 meters
