For Two Verifone C18 POS Registers IP Text Interface/Overlay - Inserters Text on NVR/IP Camera Video

Name: For Two Verifone C18 POS Registers IP Text Interface/Overlay - Inserters Text on NVR/IP Camera Video
Brand: iLink Professionals, Inc.
SKU: CPV-TIVO-IP-2-VC18
Price: 749.00 USD
Availability: InStock

Product ID CPV-TIVO-IP-2-VC18

List Price: $1,095.00

Price: $749.00

Ethernet Cable Extensions (Optional)

IP Camera POS Text Overlay Interface for Verifone C18 POS — Dual Camera/POS Cash Register

Overlay live POS and ATM transaction data directly onto your IP camera feed in real time. The iTIVO-IP/2 sits between your point-of-sale system and your NVR, linking every receipt line to the matching video frame — so you see the cashier, the product, and the price on one screen. Stop theft, prevent fraud, and simplify investigations with a single device.

DETAIL REMOTE DEMO AVAILABLE FOR LARGER VOLUME ORDERS BY SCHEDULE, CALL OUR OFFICE.

4K / 8MP 5MP 2MP / 1080p 1.3MP / 720p H.265 & H.264

See iTIVO-IP working in a store

Watch each sale print on the camera video, see a void, a no-sale and a refund get caught, pick your own register, and work out what theft is costing your store.

See how it works →

iTIVO-IP with Verifone Ruby, Topaz and C18: how it connects, kits and video →

Ready-made bundle for Verifone C18 POS

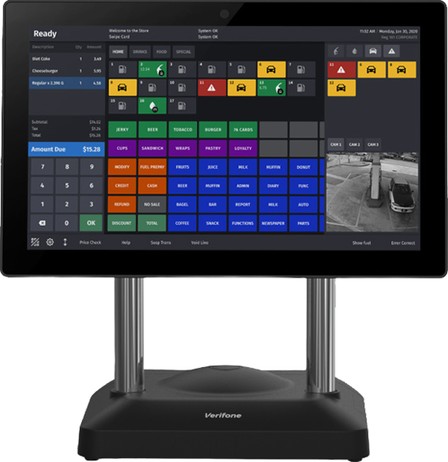

Verifone C18 POS

The CPV-TIVO-IP-2-VC18 comes ready for Verifone C18 (two registers, two cameras): it includes two of the Verifone C18 serial COM cable, 3 ft (ICABLER) — one for each register, so there is no adaptor to choose — just connect it to your Verifone C18 registers and your IP cameras.

POS system NOT included. Please check with Verifone for any additional subscriptions or activation that may be required. Hard-copy step-by-step instructions may be included as a courtesy, if available; however, we are not responsible for configuring your POS — your POS vendor or POS support will need to help you configure it.

📹

Live Text Overlay

Transaction data appears on your camera feed in real time — every item, price, and total linked to video.

🤖

Smart AI ParserAI

Automatically recognizes any POS format — Gilbarco, NCR, Clover, Epson, or plain text. No manual setup needed.

📊

Built-in Analytics

Sales reports, employee tracking, exception alerts, and AI-powered predictive analytics — all from the web dashboard.

🔒

Loss Prevention

Flag voids, no-sales, refunds, and suspicious keywords instantly. Get email alerts the moment exceptions happen.

📡

Wi-Fi Hotspot

Built-in Wi-Fi hotspot creates a direct connection to the device — plug in, connect, and configure in minutes.

🌍

Cloud TunnelNEW

Access your device from anywhere in the world — no static IP, no port forwarding, no complex network setup required.

🌐

Two LAN Port with DHCP option on 2nd LAN

1st LAN for camera/NVR/POS network and/or 2nd LAN for Cameras or POS — fully isolated, no conflicts.

🎥

Up to 8MP

Supports IP cameras up to 8 megapixels — crystal clear video with transaction overlay at any resolution.

Web-Based Management Dashboard

Manage cameras, view live overlay, review transactions, and run reports — all from your browser.

Features

✓

Supports IP cameras up to 4K/8MP, 5MP, 2MP/1080p, and 720p

✓

H.265 & H.264 codec — auto-detected

✓

ONVIF & RTSP protocol support with auto-discovery

✓

POS input via Serial RS-232, USB, TCP, or UDP

✓

Smart AI transaction parser — works with any POS formatAI

✓

Protocol support: Epson, Verifone Ruby, Gilbarco, NCR, Clover, Plain Text & many more

✓

Modern web interface for setup, monitoring, and control

✓

Live camera preview with text overlay in browser

✓

Programmable fonts, text size, color, background & transparency

✓

Text overlay position adjustable anywhere on screen

✓

Displays up to 80 lines / 140 characters per line

✓

Programmable scrolling speed, line spacing & screen clear timers

✓

Email alerts on exception keywords (Void, No Sale, Refund, etc.)

✓

Up to 16 programmable exception / flagged transaction keywords

✓

Built-in transaction & exception logging with timestamps

✓

Sales reports — revenue, tax, average transaction, peak hours

✓

Employee performance tracking & by-time analysis

✓

AI Predictive Analytics — forecast sales, items & busy hoursAI

✓

Snapshot capture & video clip recording from web UI

✓

Secure login with password recovery & account lockout

✓

LAN port(s) — one for camera/NVR, optioinal second LAN for POS network or additional cameras

✓

Built-in Wi-Fi hotspot for easy local setup & configuration

✓

Cloud Tunnel — remote access from anywhere, no static IP or port forwarding needed

✓

Wi-Fi for internet connectivity or additional camera access

How It Works
iTIVO-IP Network Diagram — POS to Camera Overlay

POS / Cash Register → iTIVO-IP → IP Camera feed with live transaction overlay → NVR recording

Specifications

Technical Specifications
Camera Support	2 IP Camera (dual channel)
Resolutions	4K/8MP, 5MP, 2MP/1080p, 1.3MP/720p
Camera Video Codec	H.265 (HEVC) & H.264 — auto-selected
Camera Protocol	ONVIF & RTSP with auto-discovery
POS Data Input	TCP, UDP, Serial RS-232, USB Serial - Text forwarding also available via TCP and UDP protocol
POS Protocols	Verifone Ruby Epson, Gilbarco XML/Plain Text, NCR, Clover, Plain Text, Smart AI Auto-Detect, & many more
Overlay Text	Up to 25 lines, 60 characters per line
Exception Keywords	13 Fixed and up to 16 programmable keywords with email, FPT, Google Drive, (WhatsAPP Beta) alerts
Transaction Logging	Transactions with timestamps (configurable retention)
Network — LAN 1	Gigabit Ethernet (RJ-45) for camera / NVR network / POS Network
Network — LAN 2 with DHCP Server Support	Gigabit Ethernet (RJ-45) for Cameras or POS network - Option to enable a DHCP Server to provide IP address to cameras connected to LAN2
Network — Wi-Fi	Built-in Wi-Fi for internet access or camera connectivity
Wi-Fi Hotspot	Built-in hotspot — connect directly for quick local setup
Cloud Tunnel	Remote access from anywhere — no static IP, no port forwarding required
Management	Web-based dashboard (accessible from any browser on the network or remotely via tunnel)
Power Supply	12VDC (included)
Local & Remote Application	Desktop browser, Mobile Browser, Windows desktop application

Compatibility

POS Systems & Cash Registers

Gilbarco Passport
Verifone Ruby 1 & Ruby 2
NCR / NCR Silver
Clover POS
Epson POS Printers
Sharp Cash Registers
Radiant Systems
Dresser Wayne Nucleus
Square POS
Toast POS
Most serial & network POS systems

Serial & IP Device Interfaces

Cash Registers & EPOS
POS Systems & Terminals
ATM Machines
Receipt Printers
Barcode Readers / Scanners
Scales & Weighing Systems
Radar / Speed Guns
GPS Systems
Access Control Panels
Kiosks & Self-Checkout
Most RS-232 serial devices

One Full Year of Cloud Tunnel Access — On Us

Every iTIVO-IP/2 includes a full year of Cloud Tunnel access, free. Securely reach your device from anywhere to change settings, pull sales & exception reports, and search your transaction logs — with no static IP and no port forwarding to set up.

Prefer to keep everything on-site? Your iTIVO-IP / 2 always works on your own network — connect directly by its local IP address, or set up a static IP with port forwarding if you like. The tunnel simply makes remote access effortless, with nothing to configure.

After the first year, keep remote tunnel access for just $12/month — far less than the cost and hassle of a dedicated static IP and port-forwarding setup. Renewal is completely optional; your iTIVO-IP / 2 keeps recording and overlaying transactions either way.

Datasheet / PDF download coming soon
See iTIVO-IP / 2 in Action — Live POS Text Overlay Demos
POS video text overlay & AI loss prevention on existing IP cameras / NVR — Gilbarco Passport, Verifone Ruby & C18
