4 in 1 Mode via OSD - BNC Video output: BNC Coax AHD/TVI/CVI 1080p, 5MP or Standard Analog 960H/2000+ TVL Bullet IR 3.6mm Lens Camera

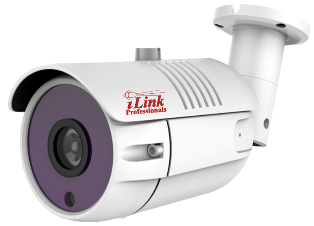

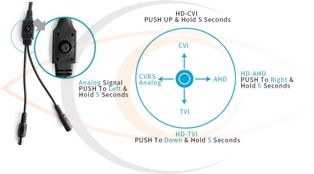

The CPV-HDIRBFIO-5SN2 is a 2nd generation 4-in-1 bullet HD 5 Megapixel infrared surveillance camera with a 90 degree viewing angle that supports the following video formats: AHD, TVI, CVI, and standard analog (CVBS). The AHD, TVI, and CVI video modes support 5 megapixels (2592x1944) and the standard analog mode (CVBS) supports 960H resolution (960 x 480). The appropriate video mode can easily be selected by using the small joystick that is attached to the camera's OSD video cable. The CPV-HDIRBFIO-5SN has built-in infrared LEDs that enables the camera to see in the dark up to 95 feet. 5MP is one of the highest resolutions in our analog range and it provides the viewer with an image that has 2.4 times as many pixels as 1080p resolution.
NIGHT VISION FROM UP TO 95FT AWAY
Model NO.
CPV-HDIRBFIO-5SN2
Video Output Mode
AHD/TVI/CVI 5M@25fps; CVBS 960H
Camera
Image Sensor
SONY Starvis IMX335
Image Resolution
5.0 MP
Effective Pixels
5M:2592*1944
TV System
PAL/NTSC
Electronic Shutter
1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio
≥50dB
Scanning System
Progressive Scan
Lens
Focus Length
Board Lens 3.6mm
Focus Control
Fixed
Lens Type
Pixels
5M Pixels
Auto Iris Support
N/A
Night Vision
Infrared LED
￠28X6PCS
Infrared Distance
30M
IR Status
Under 10 Lux by CDS
IR Power On
CDS Auto Control
Camera Features
Starlight
/
Day/Night
YES
OSD Menu Language
White Balance
AUTO / MANUAL
Gain Control
AUTO
Noise Reduction
DNR
Picture TVjustment
WDR
DWDR
OSD Support
Dip Switch
General
Waterproof
IP66
Dual Voltage
IR Cut Filter
Heater
Audio
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
Power Source
DC12V±10%,550mA
Dimension
175(W) x 69(H) x55(D)mm
Weight
600g
(Power supply not included see Accessories) * Regular Stocking Item Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice
