4 in 1 Mode via OSD - BNC Video output: BNC Coax AHD/TVI/CVI 5MP or Standard Analog 960H Bullet IR 2.8-12mm Lens Camera

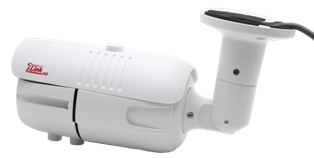

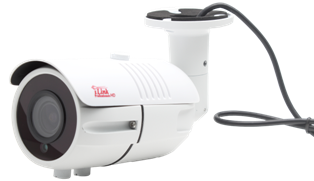

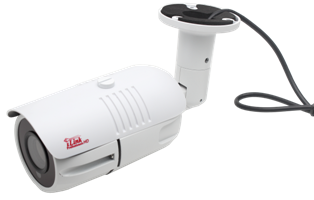

The CPV-HDIRVFBFIO-5SNV is a 4-in-1 dual voltage Sony Starvis varifocal bullet HD 5 Megapixel infrared surveillance camera with a 90 degree viewing angle that supports the following video formats: AHD, TVI, CVI, and standard analog (CVBS). The AHD, TVI, and CVI video modes support 5 megapixels (2592x1944) and the standard analog mode (CVBS) supports 960H resolution (960 x 480). The appropriate video mode can easily be selected by using the small joystick that is attached to the camera's OSD video cable. The 2.8 to 12mm Varifocal Lens are adjusted with the twist-rings on the camera and that allows the viewer to adjust the field of view at a much more zoomed angle. This camera also comes with 8 built IR LED's that enables the camera to see in complete darkness up to 130 feet. 5MP is one of the highest resolutions in our analog range and it provides the viewer with an image that has 2.4 times as many pixels as 1080p resolution.
Model NO.
CPV-HDIRVFBFIO-5SNV
Video Output Mode
AHD/CVI/TVI/CVBS
Camera
Image Sensor
Sony Starvis IMX335
Image Resolution
5.0 MP
Effective Pixels
5M: 2592*1944
TV System
PAL/NTSC
AHD/CVI/TVI: 5.0 MP
Electronic Shutter
1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio
≥50dB
Scanning System
Progressive Scan
Lens
Focus Length
2.8-12mm
Focus Control
Manual
Lens Type
Pixels
5M Pixels
Auto Iris Support
N/A
Night Vision
Infrared LED
￠28X8PCS
Infrared Distance
40M
IR Status
Under 10 Lux by CDS
IR Power On
CDS Auto Control
Camera Features
Starlight
YES
Day/Night
OSD Menu Language
White Balance
AUTO / MANUAL
Gain Control
AUTO
Noise Reduction
DNR
Picture TV Adjustment
WDR
DWDR
OSD Support
Dip Switch
General
Waterproof
Dual Voltage
Dual-voltage 12V DC & 24V AC
IR Cut Filter
Heater
Audio
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
Power Source
DC12V±10%,550mA
Dimension
228(W) x 97(H) x 82(D)mm
Weight
1400g
MECHANICAL
Color
White
Dimensions
Φ139*128mm
(Power supply not included see Accessories) * Regular Stocking Item Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice
