Model
|

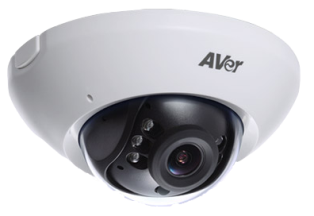

FD1020
|
|
Application Environment
|
|
Indoor / Outdoor
|
Indoor
|
|
Weatherproof
|
-
|
|
Vandal-proof
|
-
|
|
Day / night control
|
yes
|
|
Camera Images
|
|
Sensor
|
1/4" CMOS sensor
|
|
Min. illumination
|
color: 0.3 Lux (AGC ON)
|
|
B / W: 0.1 Lux (AGC ON)
|
|
Built-in IR LEDs
|
yes
|
|
IR distance
|
5M
|
|
Mechanical ICR
|
yes
|
|
Auto iris
|
no
|
|
Lens
|
|
Lens type
|
fixed lens (manual focus)
|
|
F/no
|
F1.8
|
|
Focal length
|
f=2.8mm
|
|
Angle of view
|
74.1° (horizontal)
|
|
48.9° (vertical)
|
|
Video
|
|
Compression
|
H.264 / MPEG-4 / MJPEG simultaneously
|
|
Max. resolution (H.264 / MJPEG)
|
1280 x 800
|
|
Max. frame rate
|
H.264 / MJPEG up to 30fps (1280 x 800)
|
|
Streaming
|
H.264 / MPEG-4 (3GPP only) / MJPEG
|
|
WDR (Wide Dynamic Range)
|
yes
|
|
BLC (Backlight Compensation)
|
no
|
|
DNR (Digital Noise Reduction)
|
2D & 3D
|
|
IMD (Intelligent Motion Detection) zone
|
3
|
|
Privacy mask
|
5
|
|
Image orientation
|
mirror, flip
|
|
Audio
|
|
Audio encoder
|
G.711 / G.726 audio compression
|
|
Audio streaming
|
2-way audio
|
|
Microphone
|
Mic built-in
|
|
Network
|
|
Protocols
|
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
|
|
Ethernet
|
10/100 Base-T
|
|
Security
|
password protection, IP address filtering, HTTPS encrypted data transmission, QoS/DSCP
|
|
Users
|
up to 10 users simultaneously
|
|
Alarm
|
|
Trigger event
|
mail, FTP, save to microSDHC card, Samba, DO
|
|
Interface
|
|
Digital input / output
|
1-Jan
|
|
Built-in storage option
|
microSDHC card (64GB max.)
|
|
General
|
|
Power supply
|
DC 12V/PoE
|
|
DC
|
2.52W (IR On); 1.92W (IR Off)
|
|
PoE
|
yes
|
|
Dimensions
|
100mmø x 49mm (H)
|
|
Net weight
|
180g
|
|
Temperature and humidity
|
0°C ~ 45°C
|
|
Other value-added features
|
-
|
|
Software
|
|
VMS
|
NXU Lite (free bundle up to 32CH)
|
|
Supported languages
|
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovak, Spanish, Swedish, Thai, Traditional Chinese, Turkish
|
|
Web browsing requirement
|
|
OS
|
Windows 7, XP and Microsoft® IE 8 or above
|
|
Note: Please enable 'Compatibility View' when using IE 10 or above
|
