This item has been replaced with CPV-SHVR16-4K The CPV-HVR16HD-5NE is a 16-channel standalone CCTV HD security camera DVR that can be remotely monitored by iPhone, iPad, Android, and Windows computers through an app or IP Address. The CPV-HVR16HD-5NE is 6 in 1 which means that it works with XVI, AHD, TVI, CVI, Traditional Analog (CVBS), and IP CCTV cameras. 5MP is the highest resolution in our analog range and it provides the viewer with an image that has 2.4 times as many pixels as 1080p resolution.

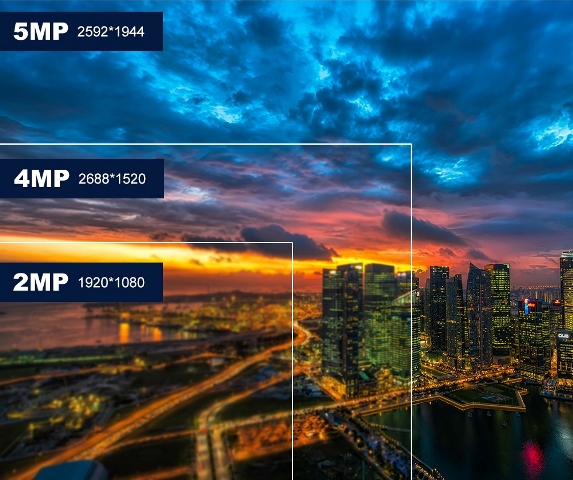

Image Resolution Comparison
Key Features:
Model
CPV-HVR16HD-1080NE
System
Main processor
Industrial grade embedded micro controller chip Huawei HIS chipset HI3521D
Operating system
Embedded LINUX operating system
System resource
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Display
Operation interface
16 bit real color GUI interface support mouse operation
Display screen
(Take all analog input as an example, others are depended on the selected channel mode)
1/4 screen
Video
Image encode
H.265 / H.264
Monitor quality
VGA:1080P ;HDMI:1080P
Playback quality
Max support 1080P under HVR and NVR mode;Max support AHD 1080N under DVR mode:
Encode capability
16*1080N
Decode capability
16*1080N@12fps

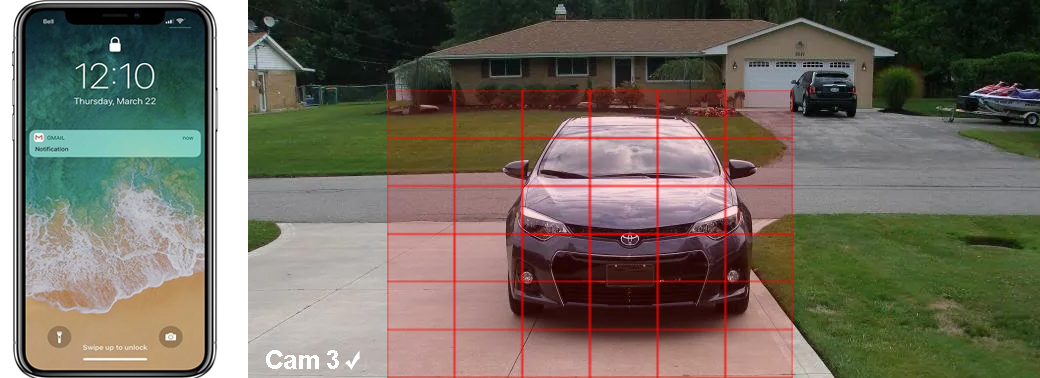

Motion detection
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio
Audio compression
G.711A
Record and playback
Record mode
Manual、alarm、motion detection、timing
Video search
Time、date、event、channel search
Storage
Video storage
Local HDD 、Network
Back up mode
Network backup、USB portable HDD、USB DVD-RW
Interface
Video input
16CH BNC
Video output
1CH VGA,1CH HDMI
Audio input
2CH RCA
Audio output
1CH RCA
Alarm input
NO
Alarm output
Network port
RJ45 10M/100M self-adaptive Ethernet port
PTZ control
1 RS485;support multi kinds of PTZ Protocol
USB port
2*USB2.0
HDD port
1 SATA(each max support 6TB)
other
Tour
Yes
Remote controller
UTC
Power
12V/2A
Dimension
260(Length) x 221(Width) x 44(Height)
Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice *All other trademarks or registered trademarks are the property of their respective owners.
