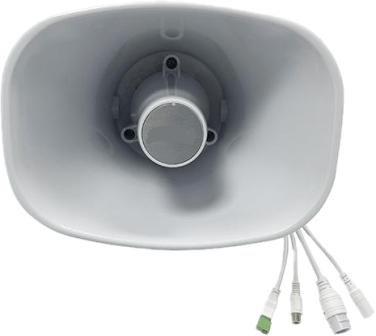

CPVSPKPoE-OS Outdoor/Indoor IP Horn Speaker with Two Way Audio
The iSPKPoE-OS Outdoor/Indoor IP Horn Speaker is a well-designed horn with a flat shape design. You can install this unit in an outdoor environment due to the IP66 weatherproof design. In addition to the built-in microphone, it supports two-way intercom communication. It is also compatible with VoIP SIP devices and ONVIF, as well as iLinkPro Gateway/VMS/NVR. You can also program it to say what you want, as it supports pre-recorded messages. The HTTP API utilizes a 48K OPUS Audio Codec to ensure excellent sound quality. You can power the weatherproof horn speaker via PoE, which eliminates the need for a local power supply.
Features:
• Two-way intercom communication
• Compatible with IP Camera GW/VMS/NVR via ONVIF or direct RCA connect
• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
• Support Pre-recorded messages
• Support HTTP API for alarm in transmit
|
Protocol
|
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
|
|
Codec
|
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
|
|
Function
|
Compatible with VoIP SIP devices and ONVIF VMS, support pre-rcorded messages, schedule play, HTTP control, alarm in.
|
|
Network
Interface
|
RJ45, 10BASE-T/100BASE-TX
|
|
Operating
condition
|
Temperature: ’-30℃ — +60℃
Humidity: 5%-85%
|
|
Harmonic
Distortion
|
0.1@1kHz
|
|
Signal to Noise
Ratio
|
91dB
|
|
MIC
|
Yes
|
|
Alarm in
Connector
|
Yes
|
|
Audio in
Connector
|
Yes
|
|
Power
|
PoE or DC 12V/24V
|
|
Rated Power
|
15W
|
|
Max SPL
|
113dB
|
|
Frequency
Response
|
300Hz- 8KHz
|
|
Type
|
Horn
|
|
Material
|
ABS (IP66)
|
|
Net Weight
|
1.3KG
~2.7 pound
|
|
Product Size
|
225 x 165 x 240 mm
|
|
Package Weight
|
1.5KG
~3.3 pound
|
