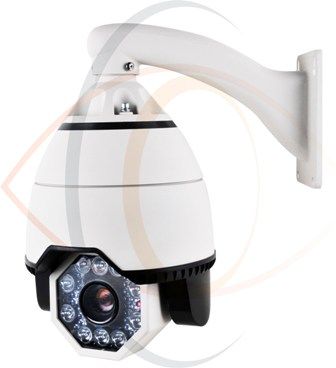

Outdoor IR PTZ - 36x High Speed WDR Day/Night Sony Ex-View CCD Dome

Model NO.

iPTZIR36xWDRDNSN

                  Operation

Image Device

1/4 Sony 550TVL Color ExView HAD CCD

Total Pixels

 PAL:752(H)x582(V)       NTSC:768(H)x494(V)

OSD menu

English, password protection

Preset position

128

Min. Illumination

0 Lux (Led on)

IR LED

Φ8mm /24 10 wing high-power infrared lamp

IR-LED distance

100m

IR-LED Mode

close range/middle-distance/ long-distance

LENS

36x ZOOM (FCB Ex1020)

Scan

Auto scan and left-right limited scan, speed adjustable

Patrol

4 tracks, 16 preset per track, speed and dwell time changeable

Pattern

2 tracks, max 15 minutes for each

Alarm

2 input, 2 output option

Private masking

Supported function based on zoom module

Address range

0--255

Communication

RS485

Baud rate

2400/4800/9600/19200, setup by dip switcher

Protocol

Pelco-P/D auto detected, or others customized

Leisure action

Home place/Scan/Patrol/Pattern

Device title

Display on/off

P/T position

Display on/off

Zoom times

Display on/off

Clock Time

Display on/off

Temperature info

Display on/off

                   Mechanical

Pan range

0°~ 360° continuously

Pan speed

0.1~ 240°/s

Tilt range
