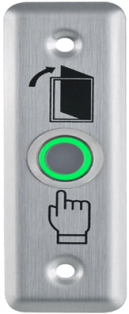

Push to Exit Button

Product ID CPV-ACCEB-1
List Price: $79.99
Price: $19.00

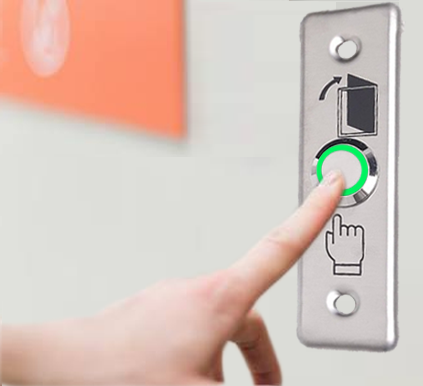

 The CPV-ACCEB-1 is a standard sized push to exit that can be used in residential, commercial, and industrial areas for all different types of locations. It is used to remotely open a door at the request of a simple push of the button. When the button is pressed, the door unlocks the maglock/strike and the LED ring around the button changes from green to red or from red to green.


Specification:

Product Parameter

Parameter Description

Dimensions

L86xW28xH20(mm)

Standard Structure

Stainless steel Panel, Steel Button

Suitable for Door

Hollow Door

Operating Temp

-10~+55(14-131F), IP65 level

Operating Humidity

0-95% (relative humidity)

Panel Material

Stainless steel Panel, Wire Drawing Finished

LED Color

Green



Wire Diagram:

NUMBER

COLOR

SYMBOL

DESCRIPTION of  Exit Button

1

Red

LED Power

Positive Power Supply - Optional

2

Black

LED GND

Power Ground - Optional

3

Green

Exit

Exit - Normal Close (NC)

4

Yellow

GND

COM

5

White

Exit

Exit - Normal Open (NO) Not used in most implementation
