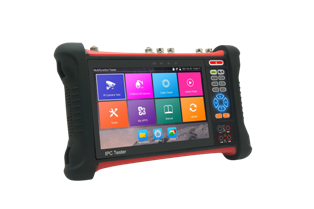

Model NO.
|
CPV-CCTVHDT2
|
|
LCD
|
Size & Display resolution
|
New 7 inch touch screen with retina display ,1920*1200 resolution
|
|
Video Mode
|
CVBS
|
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
|
|
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
|
|
PTZ control,RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc
|
|
CVBS loop test
|
the tester send and receive color bar generator signal, check BNC cable
|
|
IP camera test
|
IPC test /IPC viewer /Rapid Video/RTSP /ONVIF
|
|
Rapid Video
|
can create testing report
|
|
Hik test tool
|
pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
|
|
Dahua test tool
|
Dahua camera test, modify the user name, password and IP parameters
|
|
IP& CVBS test
|
IP& CVBS test at the same time ,converter test from analog to digital with dual test window
|
|
Coaxial HD test
|
8MP TVI camera test , UTC control/ call OSD menu
|
|
optional
|
8MP CVI camera test,UTC control d call OSD menu
|
|
|
5MP AHD test, UTC control d call OSD menu
|
|
|
HD SDI/EX-SDI camera test, support 1080P 50/60 FPS
|
|
HDMI input
|
1 channel HDMI input, support1080P
|
|
Zoom Image
|
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
|
|
Analog Video out
|
color bar generator
|
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
|
|
HDMI output
|
1 channel HDMI output, support 1920*1080P
|
|
12V/2A power output
|
Output DC12V/2A power out, supply temporarily power for the camera
|
|
Power output
|
PoE power output
|
48V PoE power output, max power 24W
|
|
5V/2A power output
|
USB 5V 2A power output, as a power bank
|
|
TDR cable test
|
BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
|
|
Optional
|
|
|

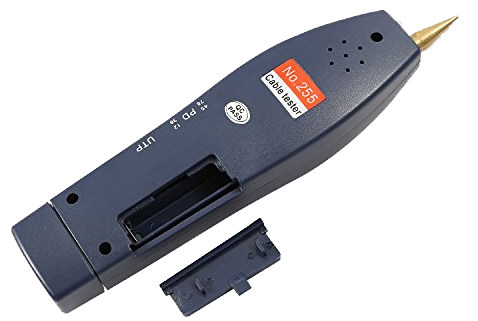

Cable tracer
|
search BNC cable, network cable and telephone cable from the mess cables
|
|
UTP cable test
|
Test UTP cable connection status and display on the screen. Read the number on the screen
|
|
RJ45 cable TDR test
|
test cable pair status, length, attenuation, reflectivity, impedance, skew etc
|
|
Tester Play
|
screen projection: tester, android version mobile phone and PC display at the same time
|
|
Network test
|
Trace route, Link monitor, DHCP server, port flashing, Ping test
|
|
Wi-Fi
|
Built in WIFI, speeds150M, display wireless camera image
|
|

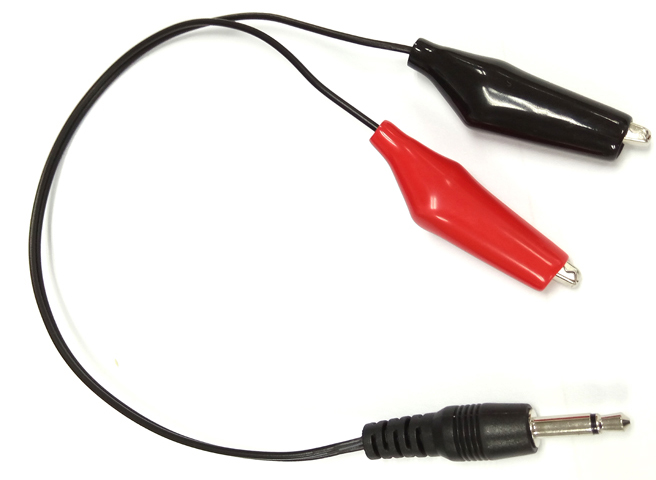

Audio test
|
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
|
|
Data monitor
|
Captures and analyzes the command data from controlling device, also can send hexadecimal
|
|
PoE test
|
Measurement POE switch or PSE power supply voltage and cable connection status
|
|
Drop-down menu
|
You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface
|
|
Power supply
|
DC 12V 2A(External)
|
|
Battery
|
Built-in 7.4V Lithium polymer battery ,5000mAh
|
|
Rechargeable
|
After charging 6-7 hours, normal working time 10 hours
|
|
Operation setting
|
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc
|
|
Auto off
|
1-30 (mins)
|
|
Temperature
|
|
|
Working Humidity
|
30%-90%
|
|
Dimension/Weight
|
231mm x 172mm x 52mm / 1.26Kg
|
