Wireless Long-Distance Bridge-Extender WIFI 1 to 1 or 1 to 4 AP Transmission Sender-Receiver Plug and Play for IP Camera/PTZ with DC12 Y
Features:
-
Plug-and-Play is very easy to use/setup
-
Flexible, durable, and high quality can effectively prevent scratches and wear. Easy to install, tangle-free, soft and easy to carry, protect the inner wire core, not easy to disconnect, safe to use
-
The device can provide 150Kbps-32.5Mbps physical bandwidth to low-rate sensors such as remote wireless access control systems, etc.
-
Traditional 2.4GHz/5GHz wireless monitoring systems with electromagnetic interference in complex environments large path attenuation, and insufficient non-visual distance transmission distance
-
Operating frequency: 910 - 930MHz (working center frequency 915MHz)
-
Spectrum Bandwidth: 1M, 2M, 4M, 8M, 16M
Product Description
IEEE802.11AH large connection technology protocol designed by the 802.11 protocol suite to enter the IoT market.
IEEE802.11AH New Wireless Protocol Used W W W Under 1 GHz System Suitable for industrial automation,
Security monitoring, the Internet-of-Things, and other industries. As a security video monitoring system, drone radio image transmission, sensor network smart meter
For increased coverage of sensors, smart payment links, hot spots, and cell phone networks.

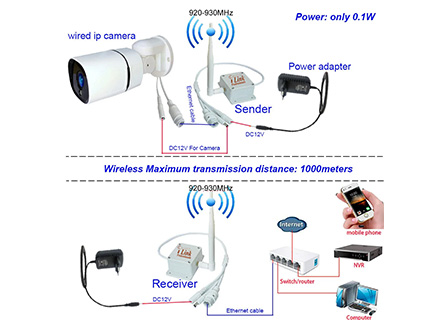

Just monitoring application:
* Device can provide 150Kbps, 32.5Mbps physical bandwidth to low-rate sensors, etc.
*Traditional 2.4GHz/5GHz wireless monitoring systems cannot avoid electromagnetic interference in complex environments, large path attenuation, and transmission distance of non-visual dissatisfaction distance.
*This device can solve the problem of unsatisfactory transmission distance and frequent disconnection. At the same time, this device is compatible with a wired/wireless package, flexible configuration, or key pairs.
Main Electrical Performance Index:
.Working frequency: 910 - 930MHz (working center frequency 915MHz)
.Spectrum Bandwidth: 1M, 2M, 4M, 8M, 16M
Maximum rate: 32.5Mbps
Gain: TBD.
Horizontal robe width: 360°
Vertical robe width: TBD.
<;1.5
Impedance: 50R
Working temperature: -40 - 60 degrees Celsius
Antenna: MCS7 at 20 ± 2 dBm
Maximum Power Consumption: 10DC12V @ mAh (0.12W)

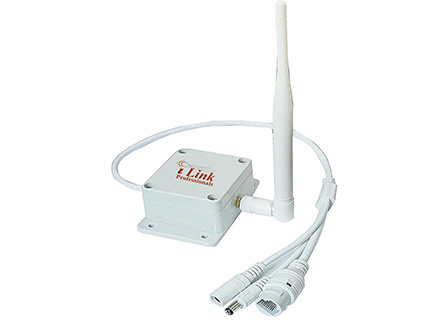

Package List:
For 1-to1 kit
1x Receiver(RX) and 1x Transmitter(TX)/Sender
2X 5DB Antenna
2x DC 12V 1A Power Adapter
For 1-to-4 kit
1x Receiver(RX) and 4x Transmitter(TX)/Sender
5X 5DB Antenna
5x DC 12V 1A Power Adapter
