16 Port Hybrid 480fps Security DVR Card (Stackable: 2 Cards = 960fps)

Product ID CPV-NV6480EXP
List Price: $1,499.99
Price: $675.00

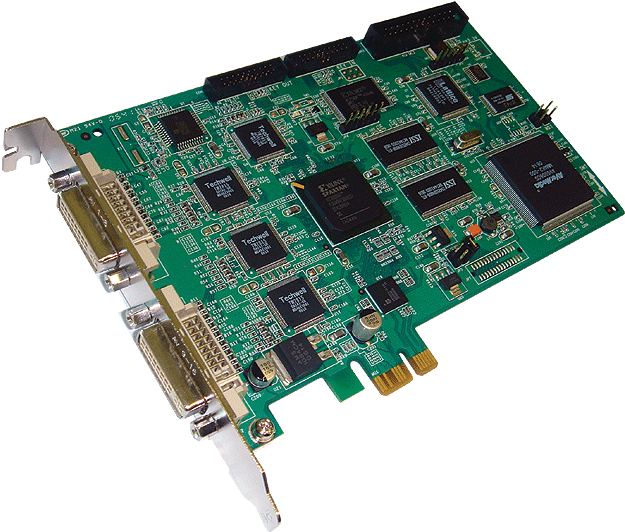

This CPV DVR card features 16 channels of video and audio recording. The CPV-iNV6480EXP offers recording for up to 480fps per channel (Stackable: 2 Cards=960fps) at full D1 or CIF resolution. This card is compatible with Windows 2000/XP Professional, Vista Professional, Windows 7 64 Bit, and Windows 10 64 Bit operating systems. Our iLink Professional technician’s build our PC based DVR’s using our own DVR cards to create hybrid PC Based surveillance systems. Our DVR cards are remotely accessible by iPhone, iPad, Android and PC.

  • Hybrid Network Video Recorder (accepts both CCTV/analog as well as IP Cameras)
  • New updated software available for Windows 10 and CM3000
  • True PCI-Express interface provides higher bandwidth and the ability to record in real time up to 640x480 (VGA) resolution (Requires the Intel Core™2 Duo processor)
  • Point of sale integration (ANSI ASCII Serial output based cash registers)
  • Dispatch Server shares internet access loading
  • Attention metric designed to measure the attention span of security officers
  • Intelligent Status Notification (alert you on HDD space, CPU load, Memory usage, etc.)
  • Display up to a matrix of 16 channels on RCA output
  • Smart voice detection recording
  • Multiple events alarm alert
  • Bookmark playback for easier retrieval
  • Backup to DVD/CD-RW directly
  • Remote backup of video surveillance data
  • Keyboard lockup to enhance security
  • Watermark image verification technology
  • Supports over 12 different languages
  • Virtual keyboard
  • Record up to 16 audio channels
  • Watch dog function built-in
  • Video enhancer software designed to visually enhance surveillance video data
  • DDNS function supports dynamic IP
  • Central monitoring system enables users to access and monitor multiple NV DVRs simultaneously for a wide range of applications

Video Features

16 composite video inputs (BNC Connectors) and/or 16 IP camera (selected IP cameras), 16 audio input channels

Video Format: NTSC and Pal

Support 320x240, 640x480, or 720x480 (enhanced) pixels (NTSC) 16-bit true color or 1920x1200 (Selected 2.3MPixel IP Cameras)

RCA composite video out to a regular terminal or TV monitor

Support static as well as dynamic de-interlacing for smoother graphics

Built in noise reduction algorithm



Display

Compact mode and advance mode

Adjustable frame rate and resolution on each camera

Auto Scan with full screen display under 1, 4, 8, 9, 13, 16-camera display modes

Digital zoom into specific area

Pan/Tilt/Zoom (PTZ) cameras: PTZ script is available for adding new protocols

Auto Gain Control (AGC) balance image quality

Software based night view function enhances low light condition

Recording

Video compression: Advanced MPEG4 / H.264

Video encryption supported

Supports 320x240, 640x480, and 720x480 up to 1920x1200 with selected Megapixel IP Cameras

Recording up to 1920x1200 (Selected 2.3MPixel IP Cameras)

Fully de-interlace in 640x480 and 720x480 mode

Recording modes: Alarm triggered/ sensor triggered/ motion detection/ continuous/ smart/ scheduled/ voice detection

Programmable multiple masking zones

Intelligent shield protects privacy

Capable of recording audio channel(s) with full synchronization

Max 16 audio channels recording (32 channels with 2 cards)

Auto recycling when storage nearing full

Intelligent pre-motion and post motion recording

Supports video encryption in Advanced MPEG4

Search & Playback & Backup

Real time playback without having to disable recording/ network functions

Powerful search: by date, time, camera, area, event, vision, POS text or log file

Full screen playback

Complete playback control: forward, backward, speed up, slow down

Digital zoom into any designated area

Export a single frame into a file or print out

Set a segment and have it output as avi video clip

Visual search by day, hour, minute, second

Bookmark search: by time, description, protect recorded file from being recycled and show file status

Direct backup to DVD-RW/CD-RW (requires Nero Ultra 6.0+)

Remote Access

Simultaneous multiple remote live/ recorded surveillance via Internet Explorer 6

Backup remotely

Central Management server controls multiple DVRs

Remote monitoring / remote recording / playback remote recording/ playback server recording

Full control of PTZ cameras remotely

PDA handy view (Windows CE / Pocket PC 2002 or above)

Two-way audio communication

1, 4, 9 and 16 screen divisions

Remote E-map

Choose from dial-up, Internet or LAN speed

Dispatch server allows you to broadcast video stream to the public

Schedule

Record, enable network, backup, reboot and disabling alarms

One time or weekly schedule

Scheduling can be done down to every quarter of an hour

E-map

Shows the positions of cameras, sensors, and relays

Store up to 8 different maps

Alarm Notifications ( on motion detected, video loss and/or sensor triggered)

E-mail notifications

FTP notifications

Voice modem call out notification

Turn relay on (light switch, alarm, etc)

Plays warning sound (can be re-recorded)

Start recording on multiple cameras (capture video from different angle)

Send TV-out signals

Launch E-maps

Enlarge camera view

Send SMS/MMS (Requires SMS Modem)

Alert messages helps security follow proper standard operational procedures

User Access

Setup up to 32 users with their own individual passwords for remote access

Each user can be re-configured to perform only certain actions (e.g. access specific cameras remotely))

I/O Card

4 sensor inputs and 4 relay outputs control inlcuded in package.

Package Includes

  • 1 iNV6480 Express Car
  • 2 octopus cables (Video/Audio connections)
  • 1 watchdog cable
  • 4 Sensors and three relay ports
  • 1 Quick User Guide
  • 1 Installation CD (includes drivers, application program, manual)

System Requirements

  • CPU: Pentium® 4.3.0 GHz or higher (Intel Core™2 Duo processor 2.4GHz required for 30fps recording in 640x480)
  • Motherboard: Intel 915, 945, 955, 965 Chipset (VIA/SiS/Ali Chipset motherboards not supported) (Recommended Intel, ASUS, Gigabyte motherboards)
  • OS: XP Professional (for HT) / Vista Professional / Windows 7 64 bit / Windows 10 64 bit
  • RAM: 512MB minimum
  • PCI-Express x 1 Compliant
  • HDD: 120GB or higher
  • CD-ROM/ DVD-ROM
  • 32-bit high color SVGA graphics card with at least 128MB video memory and DirectDraw? / YUV Rendering Capability (AGP Recommended)
  • 10/100 Base-T Ethernet Card
  • Soundcard and Speakers



Included: IP Cameras support - Support various IP Cameras, IP PTZ Cameras, Mega Pixel Cameras & Remote DVR Cameras



Included: Video Enhancer - Enhance highest-level video quality with latest technologies

Included: Video Encryption - Encryption of video algorithms for security purposes

Included: POS Integration - Post transaction data on the image for recording and search by keywords
Included: Attention Please (patent pending ) - Enable dialogs to trace if operator pays attention to security monitor

Included: Direct Burn - Support direct burn to DVD-RW discs
Included: CM3000 Basic - Four monitor display Central Management System support up to 16 DVRs
Included: WebCam - Enable remote viewing through Web Browser
Included: PDA Viewer - Support 4-camera view, full screen and live audio



And much more !!!

*Specification & Illustrations are subject to change without prior notice

*All other trademarks or registered trademarks are the property of their respective owners.
