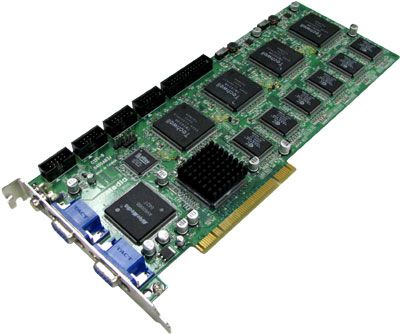

Hybrid NV6000 16 Port Video & 8 Audio 480fps Real Time

The NV6000 series comes with 4CH, 8CH, and 16CH models. The versatile line of the AVer hybrid capture card models is stackable, allowing real-time recordings from up to 32 channels of IP/analog cameras and audio inputs. With the support of full HD output, the NV6000 series can display vivid high quality images in critical areas to ensure effective security surveillance.

Video Features

• 16 composite video inputs (BNC Connectors) and/or 16 IP camera (selected IP cameras). Max. of 16 video feed per system.
• 8 audio input channels
• 16 IP camera access (selected IP cameras)
• Video Format: NTSC and PAL
• Support 320x240, 640x480, or 720x480 pixels (NTSC/PAL) 16-bit true color
• RCA composite video out to a regular terminal or TV monitor
• Support static as well as dynamic de-interlacing for smoother graphics
• Built in noise reduction algorithm

Display

• Compact mode and Advanced mode
• Adjustable frame rate and resolution on each camera
• Auto Scan with full screen display under 1, 4, 8, 9, 13, 16-camera display modes
• Digital zoom into specific area
• Pan/Tilt/Zoom (PTZ) cameras: PTZ script is available for adding new protocols
• Auto Gain Control (AGC) balances image quality ß Software based night view function enhances low light condition

Recording

• Video compression: MPEG4
• Video Encryption supported
• Support 320x240, 640x480, and 720x480
• D1 resolution recording in 320x240
• Fully de-interlace in 640x480 and 720x480 mode
• Recording modes: Alarm triggered/sensor triggered/motion detection/continuous/smart/scheduled/voice detection
• Programmable multiple masking zones
• Intelligent shield protects privacy
• Capable of recording audio channel(s) with full synchronization
• Max 8 audio channels recording
• Auto recycling when storage nearing full
• Intelligent pre-motion and post motion recording
• Supports video encryption in Advanced MPEG4

Search & Playback & Backup

• Real time playback without having to disable recording/network functions
• Power search: by date, time, camera, area, event, vision, POS text or log file
• Full screen playback
• Complete playback control: forward, backward, speed up, slow down
• Digital zoom into any designated area ß Export a single frame into a file or print out
• Set a segment and have it output as avi video clip ß Visual search by day, hour, minute, second
• Bookmark search: By time, description. Protect recorded file from being recycled and show file status
• Direct backup to DVD-RW/CD-RW (Requires Nero Ultra 6.0+)

Remote Access

• Simultaneous multiple remote live/recorded surveillance via Internet Explorer 6
• Backup remotely ß Central management server controls multiple DVRs
• Remote monitoring / remote recording / playback remote recording / playback server recording
• Full control of PTZ cameras remotely
• PDA handy view (Windows CE/Pocket PC 2002 or above)
• Two-way audio communication
• 1,4,9 and 16 screen divisions
• Remote E-map
• Choose from dial-up, Internet or Lan speed
• Dispatch server allows you to broadcast video stream to the public

Schedule

• Record, enable network, backup, reboot and disabling alarms
• One time or weekly schedule
• Scheduling can be done down to every quarter of an hour

E-map

• Shows you the positions of cameras, sensors and relays
• Stores up to 8 different maps

Alarm Notifications (on motion detected, video loss and/or sensor triggered)

• E-mail notifications
• FTP notifications
• Voice modem call out notification
• Turn relay on (light switch, alarm, etc)
• Plays warning sound (can be re-recorded)
• Start recording on multiple cameras (capture video from different angle)
• Send TV-out signals
• Launch E-maps
• Enlarge camera view
• Send SMS/MMS (Requires SMS Modem)
• Send event to Central Monitoring System
• Alert messages helps security follow proper standard operational procedures

User Access

• Setup as many users as you like with their own individual passwords
• Each user can be preconfigured to perform only certain actions (eg. access specific cameras remotely)

I/O Card

• 4 sensor inputs and 3 relay outputs controls per set

System Requirments

• CPU: Pentium 4 3.0 GHz or higher
• Motherboard with Intel 865, 875, 915, 945 Chipset (VIA/SiS/Ali chipset motherboards not supported) (Recommended Intel, ASUS, Gigabyte, MSI motherboards)
• OS: XP Professional Required
• RAM: 512MB or higher
• 32-bit PCI 2.1 compliant bus slot
• HDD: 80GB or higher
• CD-ROM/DVD-ROM
• 32-bit high color SVGA graphics card with at least 128MB video memory and DirectDraw/ YUV Rendering Capability (AGP recommended)
• 10/100 Base-T Ethernet card
• Sound card and speakers

Included: IP Cameras support - Support various IP Cameras, IP PTZ Cameras, Mega Pixel Cameras & Remote DVR Cameras	Included: Video Enhancer - Enhance highest-level video quality with latest technologies	Included: Video Encryption - Encryption of video algorithms for security purposes
Included: POS Integration - Post transaction data on the image for recording and search by keywords	Included: Attention Please (patent pending ) - Enable dialogs to trace if operator pays attention to security monitor	Included: Direct Burn - Support direct burn to DVD-RW discs
Included: CM3000 Basic - Four monitor display Central Management System support up to 16 DVRs	Included: WebCam - Enable remote viewing through Web Browser	Included: PDA Viewer - Support 4-camera view, full screen and live audio
And much more !!!
