Model
|
Infared Bullet
|
Infared Vandal Dome
|
|
System
|
CPU: TI DM36x SoC
|
|
|
Flash: 32MB
|
|
RAM: 128MB
|
|
Image Sensor
|
HIGH QUALITY 3-MEGAPIXEL 1/2.5”CMOS
|
|
Lens
|

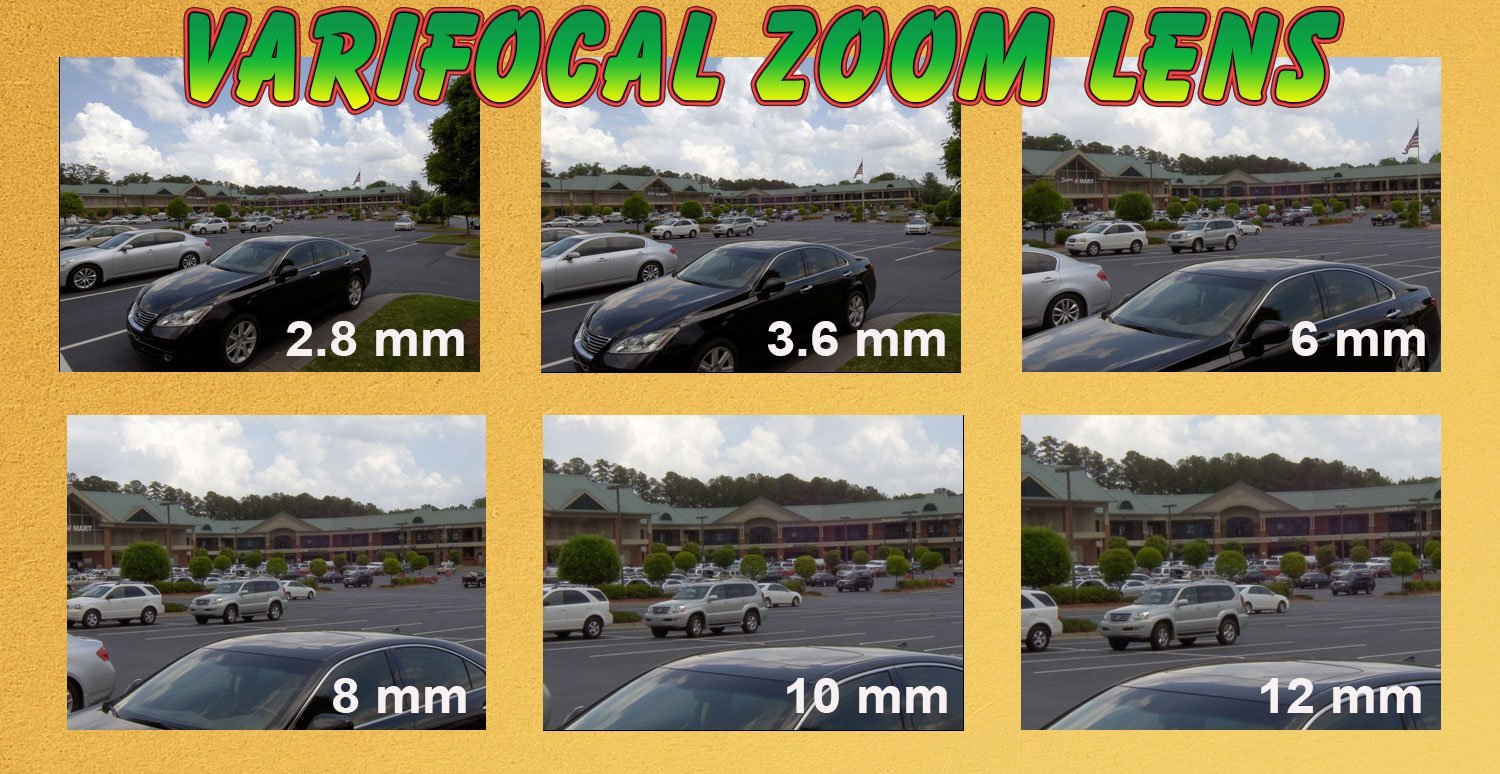

Varifocal 2.8-12mm F1.6
|
Varifocal 3.5-10mm F1.8
|
|
IR-Cut
|
Removable IR-cut filter for day & night function
|
|
IR LED
|
42 PCS LEDs
|
28 PCS LEDs
|
|
Video
|
H.264: 30 fps at 1280x720 , Highest Resolution: 15 fps at 2048x1536
|
|
|
MPEG4: 30 fps at 1280x720 , Highest Resolution: 15 fps at 2048x1536
|
|
MJPEG: 30 fps at 1280x720 , Highest Resolution: 15 fps at 2048x1536
|
|
Compression: H.264, MPEG-4 & MJPEG Streaming
|
|
Triple Codec (H.264, MPEG-4, JPEG) Selectable
|
|
Support Simultaneous multiple streams
|
|
BNC connector for video output ; NTSC/PAL video output switch
|
|
Image Settings
|
Adjustable image size, quality, and bit rate
|
|
|
Time/Date stamp and text caption overlay.
|
|
Configurable brightness, contrast, saturation, sharpness,
|
|
white balance and exposure
|
|
AGC, AWB, AES, BLC
|
|
Networking
|
Interface 10/100 Mbps Ethernet, RJ-45
|
|
|
Supported Protocol: IPv4,TCP/IP, DHCP, HTTP, FTP, SMTP, RTSP,SNTP,DNS
|
|
Supported Browser: Microsoft Internet Explorer 6.0 or above
|
|
Motion Detection
|
|
Alarm and Event
|
Event notification using SMTP, or FTP
|
|
Management
|
Smart Motion Detection Triggered Nighttime color image
|
|
Users
|
16 clients on-line monitoring at the same time
|
|
|
Multi-level user access control with password protection
|
|
On-board Storage
|
SD/SDHC card slot : Stores snapshots and video clips (optional)
|
|
Maintenance
|
Supports online firmware upgrade
|
|
I/O
|
RJ-45 Ethernet x 1, Power connection x1,BNC, SD-card slot x 1
|
|
Power
|
DC12V/PoE
|
|
Dimension
|
W:Φ150mm H:110mm
|
|
Operating Environments
|
Humidity: 90%
|
|
Temperature: 0 ~ 45 °C
|
