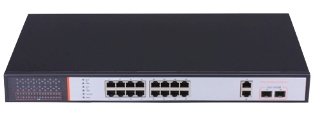

16 Port 10/100 Mbps with PoE + 2 Gigabit Uplink/DVR Port Ethernet Switch

Hardware Specification

Fast Ethernet Ports

16 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports

Gigabit ports

2 Gigabit SFP +2 Gigabit Uplink

Power over Ethernet ports

16-Port with PoE injector function

Switch Processing Scheme

Store-and-Forward

Switch fabric

7.2 Gbps

Data RAM Buffer

2.75Mb

MAC address

4K

Flow Control

Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex

Dimensions

440 x 350 x 45 mm (1U height)

Weight

5kg

Power Requirement

100-240V AC, 50-60 Hz

Temperature

Operating: 0~50 ℃
Storage: -40~70 ℃

Humidity Operating

5% to 90%, Storage: 5% to 90% (Non-condensing)

Warranty

1 year

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA. Max. 15.4 watts

Power Pin Assignment

1/2(+), 3/6(-)

Power dissipation

110 watts

Standards Conformance

Certifications

FCC , CE, ROHS

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full-duplex Flow control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p QoS
