Model |

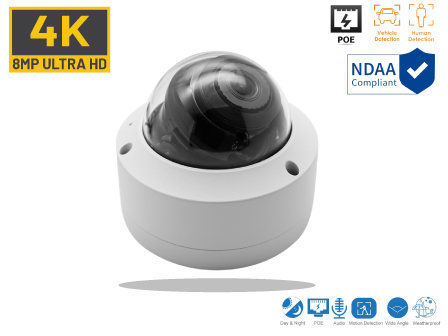

CPV-SMIRFDD-4KAI |
|
Camera |
|
Image Sensor |
1/2.7" 8MP CMOS |
|
Effective Pixels |
3842 x 2160 |
|
Electronic Shutter |
AUTO/Manual: 1/10s ~ 1/100000s, shutter threshold |
|
Min. Illumination |
0.01Lux @ F1.2 (AGC ON), 0 Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto / Manual |
|
BLC/ HLC |
Support |
|
DNR |
2D/3D DNR |
|
License Plate Mode |
Auto/Manual, Mode Switch, brightness level, OFF, Light ON Illumination |
|
Lisense Plate Mode |
Yes |
|
Other |
Milti-lines, OSD, Custom Title, Privacy Mask, Flip, Reser button |
|
Encode |
|
Video Standard |
H.264/ H265/ H.265+ |
|
Video Resolution |
Main Stream: 20fps@3840x2160, 25fps@3072x2048, 30fps@5MP / 2560x1440 / 2304x1296 / 1920x1080 / 1280x720
Sub Stream: 30fps@D1 / VGA(640x480) / 640x360, 480x360, CIF(352x288) |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Built-in Mic |
Yes |
|
OSD Overlay |
Title and Time overlay, Snapshot |
|
Smart Detection |
|
Motion Detection |
Support |
|
Target Detection |
Human and Vehicle Detection |
|
LED |
|
LED |
18 pcs SMD IR LEDs |
|
Distance |
20 - 30 M |
|
Lens |
|
Focal Length |
3.7MM Lens |
|
Language |
|
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian. |
|
Network Services |
|
Protocol |
HTTP / RTSP / FTP / NFSv3 / SMTP / DHCP / NTP / RTMP, etc. |
|
P2P |
Yes |
|
Web |
IE, Firefox, Chrome, Edge, Safari, etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
Network Port |
1-RJ45, 100Mbps |
|
Power Supply |
12 VDC ± 10% |
|
PoE |
802.3af / at 48V |
|
Powr Consumption |
< 8W |
|
Operating Temp. |
-30°C (+60)°C, 10% - 90% RH |
