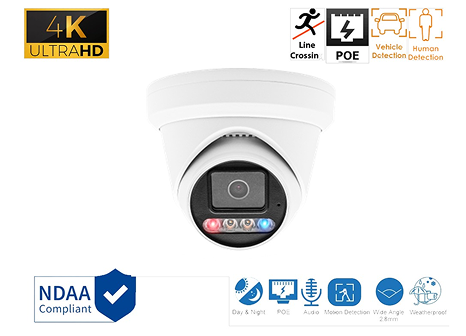

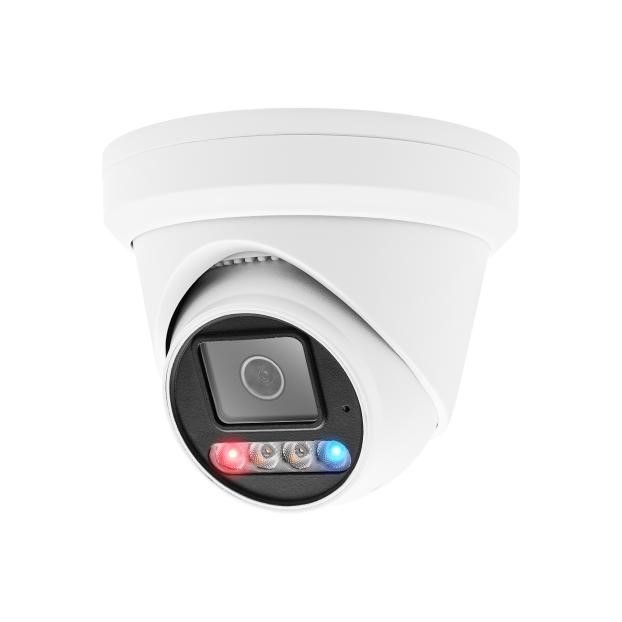

Model |
CPV-SMAFD-4KSAI2 |
|
Camera |
|
Image Sensor |
1/2.8" 8MP Sony IMX415 CMOS |
|
Soc Chip |
Sigmastar SSC378QE |
|
Effective Pixels |
3840(H)×2160 (V) |
|
Exposure Shutter |
AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable |
|
Day / Night |
Auto (Active/passive/schedule)/Day/Night, switch threshold, sensitivity |
|
Image Adjust |
Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%) adjustable |
|
White Balance |
AWB/MWB |
|
WDR |
100db WDR |
|
Light Mode |
Smart(dual-light) / Infrared / White light, adjustable |
|
Light Control |
Auto/Manual, Brightness level (0-100%) adjustable |
|
DNR |
2D/3D DNR |
|
Encode |
|
Video Standard |
H.264/H.265/MJPEG |
|
Video Resolution |
Main Stream:
20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
Sub Stream:
10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360)
Third Stream:
10fps@720P(default),30@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360)
--(when third stream customized enabled, Face Detection and Perimeter protection will be disabled) |
|
Video Bitrates |
Main stream: 64kbps-8Mbps
Sub/third stream: 64kbps-2048kbps
VBR/CBR , quality(1-9), GOP(1-128) |
|
Image Rotation |
0 / 90 / 180 / 270 degree adjustable |
|
Border Crop |
X crop, Y crop |
|
Image Mirror |
horizon / vertical / horizon & vertical adjustable |
|
OSD Overlay |
Font size(1-4), position, Time, Title, AM/PM, Color, User OSD, Alarm OSD |
|
Privacy Mask |
4 areas |
|
Region of Interest |
ROI: Each stream support 8 areas |
|
Audio Standard |
G.711-u/G.711-a/AAC/PCM, AEC |
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Yes |
|
Led |
|
Light |
2PCS red and blue flashlight alarm Light (1 red &1 blue)+2PCS IR & Warm Light LEDs |
|
Light Distance |
20-30M |
|
Lens |
|
Focal length |
F1.6 2.8 mm Fixed Lens |
|
Language |
|
English, simplified Chinese, Chinese Traditional, Korean, etc. |
|

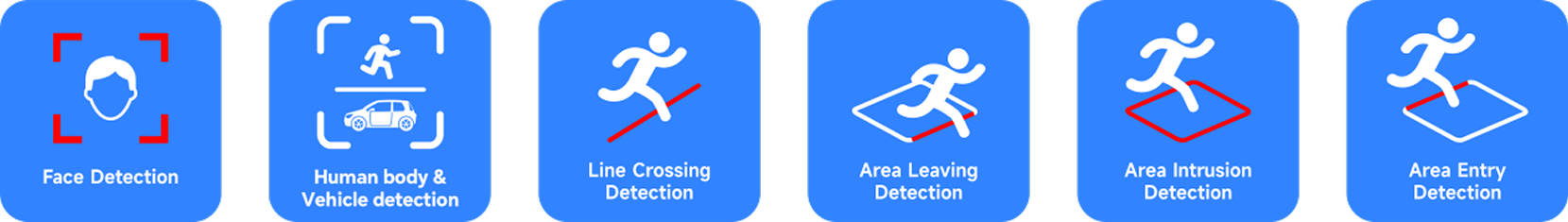

Smart Detection |
|
Motion Detection |
Yes |
|
Digital IO Alarm |
1 pair Alarm-in/Alarm-out, normally open/ normally close |
|
Human & Vehicle Detection |
support |
|
Cross Line Detection |
support |
|
Perimeter protection |
support |
|
Face Detection |
support |
|
Target Detection Type |
Human, vehicle, non-motor vehicle, Pet, Face (32px-800px) |
|
Trigger Action Linkage |
Snapshot, Record, Relay (Red-blue Led flash), White LED Flash, Voice siren Micro-SD, Email, FTP, NAS storage (optional) |
|
Simultaneous Detection |
Maximum 16 targets simultaneous detection |
|
Storage Type |
Schedule/Trigger: Micro-SD (512G) , Email, FTP, NAS |
|
Network Services |
|
Protocol |
HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS |
|
P2P Mobile APP |
Android, IOS |
|
Web Access |
IE, Firefox, Chrome, Edge, Safari, etc. |
|
PC Tool |
Windows, Mac |
|
ONVIF |
23.12 compatible (profile S G T M) |
|
General |
|
Network Port |
1-RJ45, 100Mbps, POE optional |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 8 W |
|
Operating Temp. |
-20℃-(+60)℃, 10%-90%RH |
