Now compatible and tested with upto 4k/8MP, 5MP, 4MP, 1080p/2MP, 720p & 960H analog TVI, AHD, CVI & CVBS CCTV Coax Cameras System
All orders placed in 2023 will have a free extended 3-year warranty!
Video Tutorials

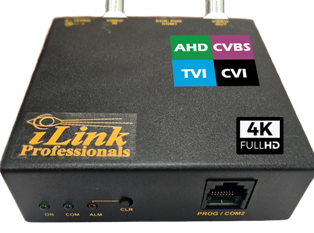

Camera Text interface device allows data transactions from cash registers and POS systems to be written and displayed on top of your normal video. Once a transaction is started, data is generated and sent to the CPV-TIVO-HD4K from the cash register, and then the CPV-TIVO-HD4K inserters and overlays this data on top of the normal camera picture. This is a perfect product to have with ATM theft and fraud becoming such an ascendant concern. The CPV-TIVO-HD4K links the data with the picture so that on the monitor screen, you will see not only the cashier and the product being sold but also the price charged by the clerk for that product.
This CCTV security camera POS Text Inserter/Overlay device works with CCTV coax AHD, TVI, CVI & CVBS analog camera, standard analog DVR or HD DVR/NVR/XVR, and VCR.
For Ethernet IP Camera/NVR 4k/8MP, 5MP, 4MP, 1080/2MP POS Text Inserter / Overlay unit CLICK HERE
Key Features:
-
Displays up to 10 lines
-
Displays up to 40 characters per line
-
Programmable text sizes, grayscale, background, and transparency
-
Text can be positioned anywhere on the screen
-
Programmable scrolling speed, pause and screen clear timers
-
Blinking text and LED on flagged transactions (exceptions)
-
16 programmable flagged/suspicious transactions (For Example, Void, No Sale, Cancelled, etc.)
-
Up to 4000 transactions and exceptions logging with time stamp (minimum 500, optional)
-
2 trigger inputs
-
2 alarm outputs
-
Cash drawer monitoring
-
Video loss and com activity LEDs for ease of installation and fault finding
-
Host/PC programming
-
HD model supports HD upto 4K, 5MP, 4MP, 2MP/1080p, 720p, 960H, and all CVBS, TVI, CVI AHD video standards.
CPV-iTIVO-HD4K is compatible with most Point-Of-Sale (POS) Systems, Cash Registers, and ATMs (For example, Verifone Ruby 1, Ruby 2, Dresser Wayne Nucleus, Gilbarco Passport, Epson, Sharp, etc.).
