Verifone Ruby POS Cash Register Text Inserter / Overlay on CCTV Video HD DVR with Com Cable

Product ID CPV-TIVO-HD4K-RBS
List Price: $695.00
Price: $339.00
Ready BNC patch cable for Camera/DVR
Ready RJ45 Ethernet patch cable for POS Port
Please specify which Camera this POS Text Inserter/Overlay device will be connecting to. We will pre-configure it for you to make it easier for your installation. If this is for stock, then just pick "For Stock" and we will leave it at the default setting, which is 2MP (1080p) AHD/TVI, and you can change it if you would like once you get the device.

All orders placed in 2023 will have a free extended 3-year warranty!
Video Overlay/Text Inserter on CCTV Video HD DVR w/ Verifone Ruby 1, 2, & CI Cable for COM5

POS system not included

The CPV-iTIVO-HD text interface takes the data transactions from your Verifone Ruby Cash Register and displays it on top of your normal video. Once a transaction is started, data is generated from the Ruby Cash Register, and it is sent to the text interface device to overlay this data on top of the normal camera picture. This is a perfect product, with ATM theft and fraud becoming such an ascendant concern. The CPV-TIVO-HD links the data with the picture so that on the monitor screen, you will see not only the cashier and the product being sold but also the price charged by the clerk for that product.

This CCTV security camera POS Text Inserter/Overlay device works with CCTV coax AHD, TVI, CVI & CVBS analog camera, standard analog DVR or HD DVR/NVR/XVR, and VCR.

Now compatible and tested with up to 4k/8MP, 5MP, 4MP, 1080p/2MP, 720p & 960H analog TVI, AHD, CVI & CVBS CCTV Coax Cameras System

For Ethernet IP Camera/NVR 4k/8MP, 5MP, 4MP, 1080/2MP POS Text Inserter / Overlay unit CLICK HERE



Live Demonstration Connecting the CPV-TIVO-HD to the Verifone Ruby Register

Features

  • Displays up to 10 lines
  • Displays up to 40 characters per line
  • Programmable text sizes, grayscale, background, and transparency
  • Text can be positioned anywhere on the screen
  • Programmable scrolling speed, pause and screen clear timers
  • Blinking text and LED on flagged transactions (exceptions)
  • 16 programmable flagged/suspicious transactions (For Example Void, No Sale, Cancelled, etc.)
  • Up to 4000 transactions and exceptions logging with time stamp (minimum 500, optional)
  • 2 trigger inputs
  • 2 alarm outputs
  • Cash drawer monitoring
  • Video loss and com activity LEDs for ease of installation and fault finding
  • Host/PC programming
  • HD model supports HD up to 4K, 5MP, 4MP, 2MP/1080p, 720p, 960H, and all CVBS, TVI, CVI AHD video standards.

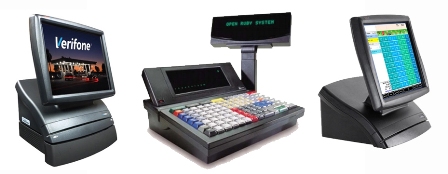

CPV-iTIVO-HD4K is compatible with most Point-Of-Sale (POS) Systems, Cash Registers, and ATMs (For example Verifone Ruby 1, Ruby 2, Dresser Wayne Nucleus, Gilbarco Passport, Epson, Sharp, many more…)

CPV-iTIVO-HD Text Inserter Connected With Various POS Videos

CPV-iTIVO-HD Serial Interfaces can make the connection between:

  • Cash Registers POS/EPOS
  • Computers
  • Printers
  • POS Systems
  • ATMs
  • Barcode Readers
  • Radar Guns
  • Scales
  • GPS Systems
  • Access Control Panels
  • Most RS-232 devices .....

Package Includes


Pigtail Cat Cable

12VDC Power Supply

RS232 Serial to RJ45 Adaptor w/ Cable

 *  Regular Stocking Item
Download High Resolution PDF

Cash Register / POS Compatibility ListWindows Programming Software -  Config files 720p 1080p 4MP 5MP 4K AHD CVI TVI.zipWiring & Cables - User Manual - Quick Start Guide - Software Config Manual
