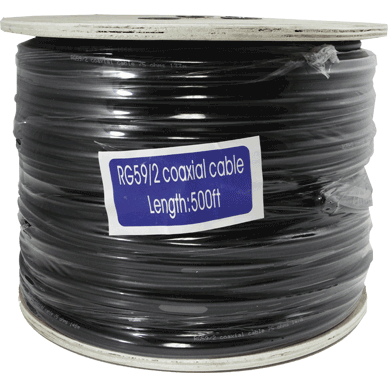

500ft RG59 Coaxial Cable with Two 18g Power Wires

Product ID CPV-C500SC
List Price: $149.00
Price: $79.00

RG59 Siamese cable is a heavily shielded cable which contains an RG59 COAX video and pair of 18g power wires. The iLink RG59 cable has a solid copper core along with 95% copper braided shielding. The RG59 Siamese cable is durable and can be cut to meet the customer’s exact need regarding length. The RG59 Siamese cable requires BNC connectors at the end of each RG59 coax part of the cable for the CCTV video transmission.

  • Center conductor: 0.81mm CCU
  • Dielectric: 3.66mm
  • Shielding: 16*8*0.12mm CCA 95%
  • Attenuation Values Conductor: 16*8*0.122mm CCA
  • Insulation material: Foam PE
  • Outer Jackets: 6.05mm
  • Voltage rating: 2.5KV
  • Nominal over diameter: 6.10mm
  • Reference Documents: Commscope Standard
  • Temperature Rating: 20
  • Installation: HP8714C
  • Operation: QC
  • Maximum installation tension: 2.5KV
  • Minimum bending radius: 50
  • Nominal cable diameter: 6.05mm
  • Nominal cable weight: 5.3Kg/100m
  • Velocity of Propagation: 84%
  • Max. Conductor D.R.R: 123 OMHS
  • Characteristic Impedance: 75+/-3 OHMS
  • uL Listed
