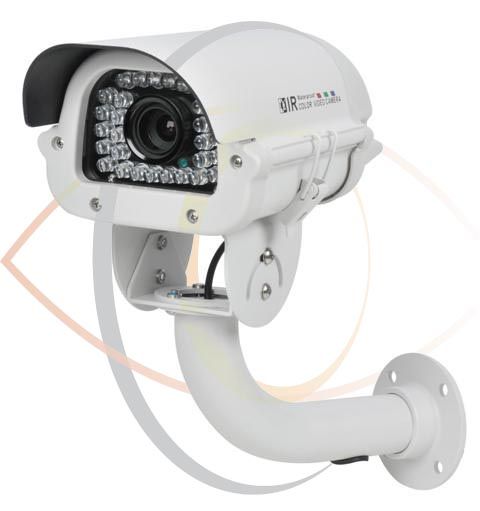

The CPV-IR7VFDNSNE CCTV bazooka camera is made with the Sony Effio Exview HAD CCD sensor / image processor which is capable of capturing video at an amazing 700 lines of resolution / 960H CCTV resolution in color and black & white. The CPV-IR7VFDNSNE includes varifocal lens and also has 30 built-in infrared LED's that enables the camera to see from over 100 feet away. During daytime the CPV-IR7VFDNSNE runs in color mode and switches automatically to black and white mode at nighttime.
Model NO.
CPV-IR7VFDNSNE
VIDEO
Image Device
1/3" Sony Effio-E 960H Exview CCD
TV System
PAL/NTSC
Total Pixels
PAL:1020(H)*596(V);NTSC:1020(H) x 508(V)
Effective Pixels
PAL:976(H) x 582(V);NTSC:976(H)*494(V)
Synchronization
Internal
Horizontal Resolution
700TVL
Min. Illumination
0lux(LED on)
S/N Ratio
>48dB
Video Output
1Vp-p,75ohm, BNC
LENS
Focal Length
2.8-11 Auto Iris Lens
Regular Field of View
D: 88.24°/ H: 73.44°/V: 63.36°
Zoom Ratio
2.25X/2.4X
Control Mode
Manual Focus
OPERATIONAL
SHUTTER/AGC
AUTO
BACKLIGHT
ON/OFF
MIRROR
BRIGHTNESS
CONTRAST
1-128
SHARPNESS
HUE
GAIN
MOTION DETECTION
DETECT SENSE
0-111
BLOCK DISP
MONITOR AREA
ON/OFF (4 AREA)
Privacy Mask
CAMERA ID
ATR
Noise Reduction
2D-DNR
NR MODE
Y/C(Y LEVEL 0-4;C LEVEL 0-4)
HLC
OSD Menu
8 languages
White Pixel Detection and Compensation
Static and Dynamic
External Synchronization
Line-Lock
White Balance
ATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK
BURST
DELAY CNT
0-10
Electronic Shutter Speed
PAL:1/50 ~ 1/100,000sec; NTSC:1/60 ~ 1/100,000sec
Infrared LED
30EA
IR Distance
40-50 Meters
Infrared Spectrum
850nm
ENVIRONMENTAL
Operation Temperature
-10℃~ +50℃
Storage Temperature
-20~ +60℃
Vandal-proof Casing
IP66
ELECTRICAL
Input Voltage/Current
DC12V540mA
Adapter Requirement
DC12V/AC24V Power
MECHANICAL
Color
Beige
Bracket
All-Oriented Bracket
Dimensions
144*223*100mm
Net Weight
1.67kg
(Power supply not included see Accessories) Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice
