Digital Pixel System technology is a new image capture and processing innovation which is quite different from the traditional CCD and CMOS. The quantity of light sriking each picture element (pixel) is converted to a digital value at the earliest possible point: at the pixel itself.
The DPS system uses the individual ADCs in each pixel to perform non-destructive correlated double sampling at each pixel. Each pixel is also provided with an adjustable offset cancellation gain amplifier to assure uniform response throughout the sensor array. These innovations greatly reduce noticeable fixed pattern noise problems commonly associated with the column-level ADC used APS sensors.

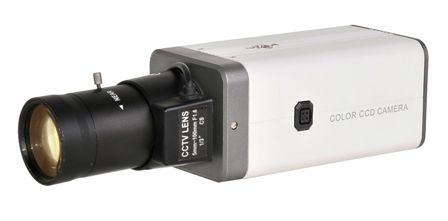

Model No.
CPV-SWDR550DSP
Image Sensor
1/3”DPS(Digital Pixel System)
Signal System
NTSC
Effective Pixels
NTSC:720(H)*540(V)
Horizontal resolution
550TVLines
Minimum Illumination
0.5Lux F 1.2; 0.04LUX F 1.2(Slow Shutter)
S/N Ratio
More than 125Db
Dynamic Range
95Db Typical,125 dB Maximum
Control Method
OSD Screen Control
White
AWB/ATW LINIT/ATW DESAT/MANUAL (Selectable)
Balance
Auto White Balance Range
2000K TO 11000K
AGC
Adjustable
Video Output
1.0-1.2Vp-p adjustable 75 Ohm
Sync mode
INT/L.L
Lens Mount
CS/C with ring
Auto Iris
DC
Power Source
AC24 150mA/DC 12V
Power Consumption
4.5W
Operating Temperature
-10℃ - +50℃ RH95% Max
(Power supply not included see Accessories) Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice
